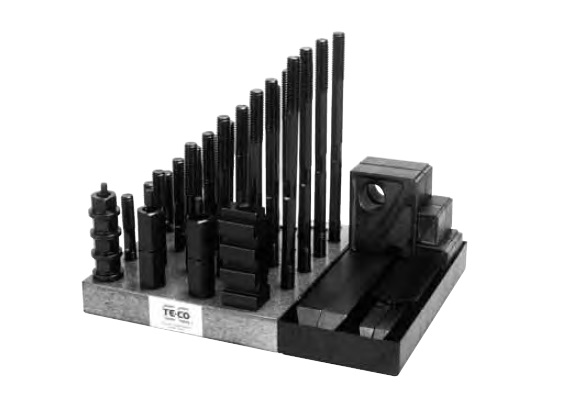

Te-Co Super Clamp Kits
Kit No. 68107-08 & 68113-15:80mm, 110mm, 150mm, 175mm, 200mm and 250mm long. |
Item # | Item Name | Table T-Slot Size | Stud Size | Weight |
---|---|---|---|---|
TE-68101 | Super Clamp Kit with 25 mm Thick Step Blocks | 10.00 mm | M8 x 1.25 | 18.00 lb |
TE-68102 | Super Clamp Kit with 25 mm Thick Step Blocks | 12.00 mm | M10 x 1.5 | 18.00 lb |
TE-68103 | Super Clamp Kit with 25 mm Thick Step Blocks | 14.00 mm | M10 x 1.5 | 18.00 lb |
TE-68104 | Super Clamp Kit with 25 mm Thick Step Blocks | 14.00 mm | M12 x 1.75 | 23.00 lb |
TE-68105 | Super Clamp Kit with 25 mm Thick Step Blocks | 16.00 mm | M12 x 1.75 | 23.00 lb |
TE-68106 | Super Clamp Kit with 25 mm Thick Step Blocks | 17.00 mm | M12 x 1.75 | 24.00 lb |
TE-68107 | Super Clamp Kit with 25 mm Thick Step Blocks | 18.00 mm | M16 x 2.0 | 28.30 lb |
TE-68108 | Super Clamp Kit with 25 mm Thick Step Blocks | 20.00 mm | M16 x 2.0 | 28.30 lb |
TE-68110 | Super Clamp Kit with 38 mm Thick Step Blocks | 14.00 mm | M12 x 1.75 | 30.00 lb |
TE-68111 | Super Clamp Kit with 38 mm Thick Step Blocks | 16.00 mm | M12 x 1.75 | 30.00 lb |
TE-68112 | Super Clamp Kit with 38 mm Thick Step Blocks | 17.00 mm | M12 x 1.75 | 30.00 lb |
TE-68113 | Super Clamp Kit with 38 mm Thick Step Blocks | 18.00 mm | M16 x 2.0 | 44.30 lb |
TE-68114 | Super Clamp Kit with 38 mm Thick Step Blocks | 20.00 mm | M16 x 2.0 | 44.30 lb |
TE-68115 | Super Clamp Kit with 38 mm Thick Step Blocks | 22.00 mm | M20 x 2.5 | 58.00 lb |
TE-20201 | Super Clamp Kit with 1" Thick Step Blocks | 0.375 in | 5/16-18 | 18.20 lb |
TE-20202 | Super Clamp Kit with 1" Thick Step Blocks | 0.438 in | 3/8-16 | 18.20 lb |
TE-20203 | Super Clamp Kit with 1" Thick Step Blocks | 0.500 in | 3/8-16 | 18.20 lb |
TE-20204 | Super Clamp Kit with 1" Thick Step Blocks | 0.563 in | 3/8-16 | 18.00 lb |
TE-20205 | Super Clamp Kit with 1" Thick Step Blocks | 0.563 in | 1/2-13 | 23.20 lb |
TE-20206 | Super Clamp Kit with 1" Thick Step Blocks | 0.625 in | 1/2-13 | 23.20 lb |
TE-20207 | Super Clamp Kit with 1" Thick Step Blocks | 0.688 in | 1/2-13 | 24.20 lb |
TE-20208 | Super Clamp Kit with 1" Thick Step Blocks | 0.688 in | 5/8-11 | 28.50 lb |
TE-20209 | Super Clamp Kit with 1" Thick Step Blocks | 0.750 in | 5/8-11 | 28.50 lb |
TE-20210 | Super Clamp Kit with 1" Thick Step Blocks | 0.813 in | 5/8-11 | 28.50 lb |
TE-20211 | Super Clamp Kit with 1-1/2" Thick Step Blocks | 0.563 in | 1/2-13 | 30.20 lb |
TE-20212 | Super Clamp Kit with 1-1/2" Thick Step Blocks | 0.625 in | 1/2-13 | 30.20 lb |
TE-20213 | Super Clamp Kit with 1-1/2" Thick Step Blocks | 0.688 in | 1/2-13 | 30.20 lb |
TE-20214 | Super Clamp Kit with 1-1/2" Thick Step Blocks | 0.688 in | 5/8-11 | 44.50 lb |
TE-20215 | Super Clamp Kit with 1-1/2" Thick Step Blocks | 0.750 in | 5/8-11 | 44.50 lb |
TE-20216 | Super Clamp Kit with 1-1/2" Thick Step Blocks | 0.813 in | 5/8-11 | 44.50 lb |
TE-20217 | Super Clamp Kit with 1-1/2" Thick Step Blocks | 0.813 in | 3/4-10 | 58.20 lb |
TE-20218 | Super Clamp Kit with 1-1/2" Thick Step Blocks | 0.875 in | 3/4-10 | 58.20 lb |
TE-20219 | Super Clamp Kit with 1-1/2" Thick Step Blocks | 1.000 in | 3/4-10 | 58.20 lb |
TE-20222 | Super Clamp Kit with 1-1/2" Thick Step Blocks | 1.063 in | 3/4-10 | 59.00 lb |
TE-20220 | Super Clamp Kit with 2" Thick Step Blocks | 1.000 in | 7/8-9 | 90.00 lb |
TE-20221 | Super Clamp Kit with 2" Thick Step Blocks | 1.063 in | 1-8 | 99.00 lb |

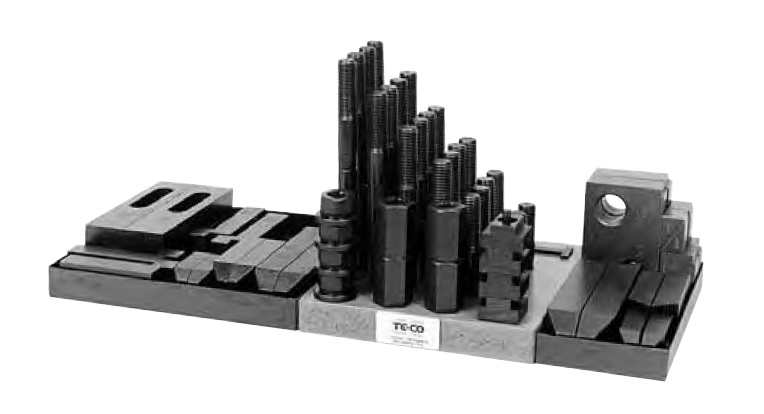

Expanded Clamp Kits
|
Item # | Item Name | Soft Clamps 4 each | Step Clamps 4 each | Plain Clamps 2 each | T- Slot Size | Stud Size | Weight |
---|---|---|---|---|---|---|---|
TE-21502 | Expanded Clamp Kits | TE-30701, Soft Clamps |
TE-30801, Step Clamps |
TE-30401, Plain Clamps TE-30402, Plain Clamps TE-30403, Plain Clamps |
0.438 in | 3/8-16 | 32.00 lb |
TE-21503 | Expanded Clamp Kits | TE-30701, Soft Clamps |
TE-30801, Step Clamps |
TE-30401, Plain Clamps TE-30402, Plain Clamps TE-30403, Plain Clamps |
0.500 in | 3/8-16 | 32.00 lb |
TE-21504 | Expanded Clamp Kits | TE-30701, Soft Clamps |
TE-30801, Step Clamps |
TE-30401, Plain Clamps TE-30402, Plain Clamps TE-30403, Plain Clamps |
0.563 in | 3/8-16 | 32.00 lb |
TE-21505 | Expanded Clamp Kits | TE-30702, Soft Clamps |
TE-30802, Step Clamps |
TE-30404, Plain Clamps TE-30405, Plain Clamps TE-30406, Plain Clamps |
0.563 in | 1/2-13 | 38.00 lb |
TE-21506 | Expanded Clamp Kits | TE-30702, Soft Clamps |
TE-30802, Step Clamps |
TE-30404, Plain Clamps TE-30405, Plain Clamps TE-30406, Plain Clamps |
0.625 in | 1/2-13 | 38.00 lb |
TE-21507 | Expanded Clamp Kits | TE-30702, Soft Clamps |
TE-30802, Step Clamps |
TE-30404, Plain Clamps TE-30405, Plain Clamps TE-30406, Plain Clamps |
0.688 in | 1/2-13 | 38.00 lb |
TE-21508 | Expanded Clamp Kits | TE-30703, Soft Clamps |
TE-30803, Step Clamps |
TE-30407, Plain Clamps TE-30408, Plain Clamps TE-30409, Plain Clamps |
0.688 in | 5/8-11 | 48.00 lb |
TE-21509 | Expanded Clamp Kits | TE-30703, Soft Clamps |
TE-30803, Step Clamps |
TE-30407, Plain Clamps TE-30408, Plain Clamps TE-30409, Plain Clamps |
0.750 in | 5/8-11 | 48.00 lb |
TE-21510 | Expanded Clamp Kits | TE-30703, Soft Clamps |
TE-30803, Step Clamps |
TE-30407, Plain Clamps TE-30408, Plain Clamps TE-30409, Plain Clamps |
0.813 in | 5/8-11 | 48.00 lb |
