Metric Tapped Hole Location Gages

white space Metric Tapped Hole Location Gages
white space white space
 • Material: Body - 52100 Steel ; Collar - 12L14 Steel
 • Black oxide finish on collar only
 • English Tapped Hole Location Gages are used to accurately measure the distance between two tapped holes in a workpiece.
 • Shaft size is the same diameter on all gages to simplify calculation of the hole spread.
 • All diameters are concentric within .0002 T.I.R.
 • ISO metric fine pitch thread, Left-hand thread, helicoil, or other non-standard gages will be quoted upon request.
 • Two Piece construction.
 • Thread Class: 6G
white space white space white space
tapped hole location gage
white space white space white space

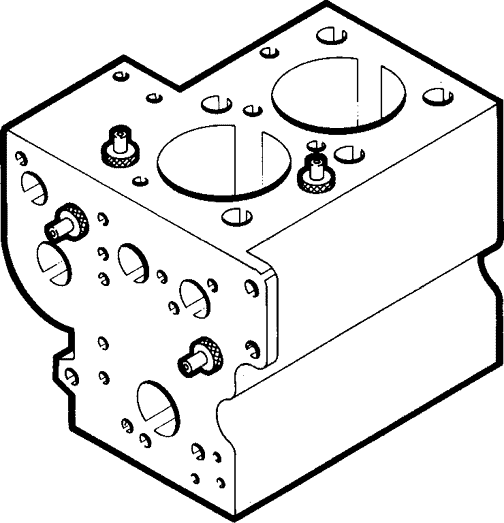

block with tapped hole location gages
Item # Thread (A) Diameter (B) Diameter (C) D E
TE-11101 M1.6 x .35  7.95 mm 6.35 mm 22.00 mm 6.35 mm
TE-11103 M2 x .40  7.95 mm 6.35 mm 22.00 mm 6.35 mm
TE-11105 M2.5 x .45  7.95 mm 6.35 mm 22.00 mm 6.35 mm
TE-11107 M3 x .50  7.95 mm 6.35 mm 22.00 mm 6.35 mm
TE-11109 M4 x .70  7.95 mm 6.35 mm 22.00 mm 6.35 mm
TE-11111 M5 x .80  9.53 mm 6.35 mm 22.00 mm 6.35 mm
TE-11113 M6 x 1.00  9.53 mm 6.35 mm 22.00 mm 6.35 mm
TE-11121 M8 x 1.25  12.70 mm 6.35 mm 28.00 mm 12.70 mm
TE-11123 M10 x 1.50  12.70 mm 6.35 mm 28.00 mm 12.70 mm
TE-11125 M12 x 1.75  22.23 mm 6.35 mm 28.00 mm 12.70 mm
TE-11127 M16 x 2.0  22.23 mm 6.35 mm 28.00 mm 12.70 mm
TE-11129 M20 x 2.50  25.40 mm 6.35 mm 28.00 mm 12.70 mm

link to Te-Co product index




Trademarks are the properties of their respective owner(s).

January 2023, July 2010 CSS, December 2002

The descriptions, illustrations, specifications, dimensions, and part numbers are subject to change without notice.
