Metric Thread Mills Straight Flute

straight flute thread mill

Straight flute thread mills come in a large variety of sizes and are crest cutting for internal threads only.

Non-Coolant   |  Coolant Through Solid Carbide   |  Coolant Through Carbide Tipped



THREAD MILLS - METRIC STRAIGHT FLUTE - CARBIDE - FULL PROFILE

  • Optional short length-of-cut for ideal length-to-diameter ratio

  • Polished flute face for optimum performance Made with premium submicron grade carbide

  • Internal crest cutting design for strongest possible tool

  • AlTiN+ for ferrous, TaC coating for non-ferrous materials

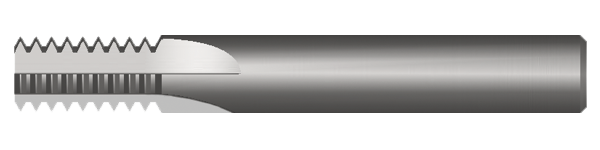

stright flute thread mill image

MIN ID THREAD/ PITCH* “A” TOOL DIA. “B” LENGTH OF CUT “Q” LENGTH “S” SHANK DIA. OAL FLUTES ORDER # EDP #
UNCOATED UNCOATED AlTiN+ TaC
INTERNAL THREADS ONLY
M3-.5 0.090 0.264 0.009 0.250 2.50 3 TM3-.5MM 100104 100188 130211
M3-.5 0.090 0.185 0.009 0.250 2.50 3 TM3-.5MM-S 100554 100620 130250
M3.5-.6 0.090 0.269 0.011 0.250 2.50 3 TM3.5-.6MM 100101 100185 130212
M3.5-.6 0.090 0.175 0.011 0.250 2.50 3 TM3.5-.6MM-S 100551 100617 130251
M4-.5 0.110 0.323 0.009 0.250 2.50 3 TM4-.5MM 100110 100194 130213
M4-.5 0.110 0.224 0.009 0.250 2.50 3 TM4-.5MM-S 100560 100626 130252
M4-.7 0.110 0.342 0.012 0.250 2.50 3 TM4-.7MM 100113 100197 130214
M4-.7 0.110 0.231 0.012 0.250 2.50 3 TM4-.7MM-S 100563 100629 130253
M4.5-.75 0.125 0.337 0.013 0.250 2.50 3 TM4.5-.75MM 100107 100191 130215
M4.5-.75 0.125 0.219 0.013 0.250 2.50 3 TM4.5-.75MM-S 100557 100623 130254
M5-.7 0.140 0.397 0.012 0.250 2.50 3 TM5-.7MM 100116 100200 130216
M5-.7 0.140 0.259 0.012 0.250 2.50 3 TM5-.7MM-S 100566 100632 130255
M5-.8 0.140 0.391 0.014 0.250 2.50 3 TM5-.8MM 100119 100203 130217
M5-.8 0.140 0.265 0.014 0.250 2.50 3 TM5-.8MM-S 100569 100635 130256
M6-.5 0.170 0.520 0.009 0.250 2.50 3 TM6-.5MM 100122 100206 130218
M6-.5 0.170 0.382 0.009 0.250 2.50 3 TM6-.5MM-S 100572 100638 130257
M6-.75 0.170 0.543 0.013 0.250 2.50 3 TM6-.75MM 100125 100209 130219
M6-.75 0.170 0.366 0.013 0.250 2.50 3 TM6-.75MM-S 100575 100641 130258
M6-1 0.170 0.528 0.018 0.250 2.50 3 TM6-1MM 100131 100215 130221
M6-1 0.170 0.370 0.018 0.250 2.50 3 TM6-1MM-S 100581 100647 130260
M6-1.25 0.170 0.561 0.022 0.250 2.50 3 TM6-1.25MM 100128 100212 130220
M6-1.25 0.170 0.364 0.022 0.250 2.50 3 TM6-1.25MM-S 100578 100644 130259
M8-.75 0.235 0.662 0.013 0.250 2.50 3 TM8-.75MM 100134 100218 130222
M8-1 0.235 0.685 0.018 0.250 2.50 3 TM8-1MM 100140 100224 130223
M8-1.25 0.235 0.660 0.022 0.250 2.50 3 TM8-1.25MM 100137 100221 130224
M10-1 0.290 0.803 0.018 0.3125 3.50 4 TM10-1MM 100230 100242 130201
M10-1.5 0.290 0.792 0.027 0.3125 3.50 4 TM10-1.5MM 100227 100239 130200
M12-1.25 0.345 0.807 0.022 0.375 3.50 4 TM12-1.25MM 100245 100263 130202
M12-1.5 0.345 0.792 0.027 0.375 3.50 4 TM12-1.5MM 100248 100266 130203
M12-1.75 0.345 0.787 0.031 0.375 3.50 4 TM12-1.75MM 100251 100269 130204
M12-1 0.400 1.079 0.018 0.500 3.50 4 TM12-1MM 100272 100308 130205
M14-1.25 0.450 1.103 0.022 0.500 3.50 4 TM14-1.25MM 100275 100311 130206
M14-1.5 0.450 1.087 0.027 0.500 3.50 4 TM14-1.5MM 100278 100314 130207
M14-1.75 0.450 1.134 0.031 0.500 3.50 4 TM14-1.75MM 100281 100317 130208
M14-2 0.450 1.134 0.035 0.500 3.50 4 TM14-2MM 100284 100320 130209
M16-2.5 0.450 1.122 0.044 0.500 3.50 4 TM16-2.5MM 100287 100323 130210

all dimensions are in inches except as noted

Thread mills can cut any larger size internal thread of the same pitch

Back to Top of Page








METRIC THREAD MILLS - COOLANT THROUGH - SOLID CARBIDE - FULL PROFILE

AlTiN+ coating for higher cutting speed Coolant to each flute

  • AlTiN+ coating for higher cutting speed Coolant to each flute

  • Made with premium submicron grade carbide

  • Internal Threads Only

coolant through thread mill imnage

MIN IN THREAD/ PITCH* "A" TOOL DIA. "B" LENGTH OF CUT “Q” LENGTH "S" SHANK DIA. OAL FLUTE ORDER # EDP #
UNCOATED AlTiN+ UNCOATED AlTiN+
INTERNAL THREADS ONLY
M3-.5 0.090 0.264 0.009 0.250 2.50 3 TMC3-.5MM TMC3-.5MM-A 100401 100428
M4-.5 0.110 0.323 0.009 0.250 2.50 3 TMC4-.5MM TMC4-.5MM-A 100407 100434
M4-.7 0.110 0.342 0.012 0.250 2.50 3 TMC4-.7MM TMC4-.7MM-A 100410 100437
M4.5-.75 0.125 0.337 0.013 0.250 2.50 3 TMC4.5-.75MM TMC4.5-.75MM-A 100404 100431
M5-.8 0.140 0.391 0.014 0.250 2.50 3 TMC5-.8MM TMC5-.8MM-A 100413 100440
M6-.5 0.170 0.520 0.009 0.250 2.50 3 TMC6-.5MM TMC6-.5MM-A 100416 100443
M6-1 0.170 0.528 0.018 0.250 2.50 3 TMC6-1MM TMC6-1MM-A 100419 100446
M8-1 0.235 0.685 0.018 0.250 2.50 3 TMC8-1MM TMC8-1MM-A 100425 100452
M8-1.25 0.235 0.660 0.022 0.250 2.50 3 TMC8-1.25MM TMC8-1.25MM-A 100422 100449
M10-1 0.290 0.803 0.018 0.3125 3.50 4 TMC10-1MM TMC10-1MM-A 100458 100464
M10-1.5 0.290 0.792 0.027 0.3125 3.50 4 TMC10-1.5MM TMC10-1.5MM-A 100455 100461
M12-1.25 0.345 0.807 0.022 0.375 3.50 4 TMC12-1.25MM TMC12-1.25MM-A 100467 100470
M14-1.5 0.450 1.087 0.027 0.500 3.50 4 TMC14-1.5MM TMC14-1.5MM-A 100473 100479
M14-2 0.450 1.134 0.035 0.500 3.50 4 TMC14-2MM TMC14-2MM-A 100476 100482

all dimensions are in inches except as noted

Thread mills can cut any larger size internal thread of the same pitch

Back to Top of Page








METRIC THREAD MILL _ COOLANT THROUGH - CARBIDE TIPPED

  • Non-crest cutting on the internal thread allows maximum flexibility for plated and non-standard threads

coolant through carbide tipped thread millimage

MIN ID THREAD
/ PITCH*		 “A” TOOL DIA. “B” LENGTH OF CUT “C” TOOL REACH “Q” LENGTH “S” SHANK DIA. OAL FLUTES ORDER # EDP #
UNCOATED AlTiN+ UNCOATED AlTiN+
INTERNAL OR EXTERNAL THREADS
M24-1.5 0.740 1.058 1.370 0.027 0.750 6.00 4 TMC24-1.5MM TMC24-1.5MM-A 100485 100515
M24-2 0.740 1.100 1.370 0.036 0.750 6.00 4 TMC24-2MM TMC24-2MM-A 100494 100524
M24-2.5 0.740 1.076 1.370 0.045 0.750 6.00 4 TMC24-2.5MM TMC24-2.5MM-A 100491 100521
M24-3 0.740 1.058 1.370 0.054 0.750 6.00 4 TMC24-3MM TMC24-3MM-A 100497 100527
M36-4 0.990 1.095 2.000 0.071 1.000 6.00 6 TMC36-4MM TMC36-4MM-A 100530 100536

all dimensions are in inches except as noted

Thread mills can cut any larger size internal thread of the same pitch







Straight Flute  Metric

Back to Top of Page
