NPT/ NPTF Thread Mills

npt thread mill

NPT thread mills come in straight, helical and staggered tooth design.

They will cut both internal and external threads. NPTF are for dryseal applications.






STRAIGHT FLUTE

SOLID CARBIDE NPT (NATIONAL PIPE TAPER)

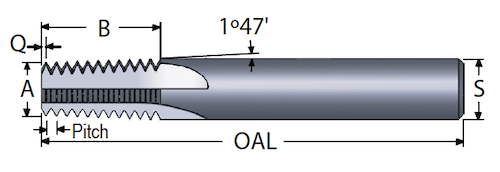

npt thread mill straight flute

  • Made with premium submicron grade carbide

  • AlTiN+ coated for higher cutting speed



STRAIGHT FLUTE - NPT
THREAD DIA. / PITCH “A” TOOL DIA. “B” LENGTH OF CUT “Q” LENGTH “S” SHANK DIA. OAL FLUTES ORDER # EDP #
UNCOATED AlTiN+ UNCOATED AlTiN+
INTERNAL OR EXTERNAL THREADS
1/16, 1/8-27 0.218 0.534 0.018 0.2500 2.50 4 TM218-27NPT TM218-27NPT-A 101001 101013
1/8-27 0.280 0.758 0.018 0.3750 3.50 4 TM280-27NPT TM280-27NPT-A 101019 101043
1/4, 3/8-18 0.330 0.693 0.027 0.3750 3.50 4 TM330-18NPT TM330-18NPT-A 101025 101049
1/4, 3/8-18 0.382 0.800 0.027 0.4375 3.50 4 TM382-18NPT TM382-18NPT-A 101055 101067
1/2, 3/4-14 0.430 1.105 0.035 0.5000 3.50 4 TM430-14NPT TM430-14NPT-A 101073 101085
1 to 2-11½ 0.650 1.605 0.043 0.7500 4.00 5 TM650-11.5NPT TM650-11.5NPT-A 101091 101109
2½ up-8 0.650 1.560 0.062 0.7500 4.00 5 TM650-8NPT TM650-8NPT-A 101097 101115

For increased performance, use with tapered pipe reamer

all dimensions are in inches

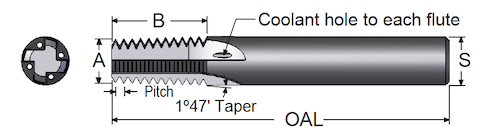

straight flute thread mill with coolant

  • Coolant to each flute

  • Cuts internal or external threads



COOLANT THROUGH STRAIGHT FLUTE - NPT
MIN IN THREAD/ PITCH "A" TOOL DIA. "B" LENGTH OF CUT “Q” LENGTH "S" SHANK DIA. OAL FLUTES ORDER # EDP #
UNCOATED AlTiN+ UNCOATED AlTiN+
INTERNAL OR EXTERNAL THREADS
1/16, 1/8-27 0.218 0.534 0.018 0.250 2.50 3 TMC218-27NPT TMC218-27NPT-A 101151 101154
1/4, 3/8-18 0.330 0.693 0.027 0.375 3.50 4 TMC330-18NPT TMC330-18NPT-A 101157 101160
1/2, 3/4-14 0.430 1.105 0.035 0.500 3.50 4 TMC430-14NPT TMC430-14NPT-A 101163 101166
1 to 2-11½ 0.550 1.172 0.043 0.625 3.50 6 TMC550-11.5NPT TMC550-11.5NPT-A 101169 101172



all dimensions are in inches

STRAIGHT FLUTE - DRYSEAL - NPTF

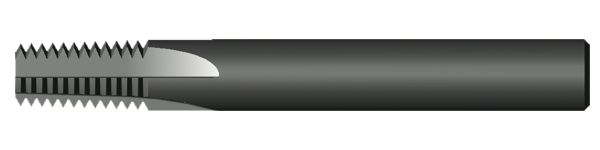

npt thread mill straight flute

  • AlTiN+ coating for improved surface finish

  • Polished flute face for optimum performance



STRAIGHT FLUTE - DRYSEAL - NPTF
THREAD DIA. / PITCH “A” TOOL DIA. “B” LENGTH OF CUT “Q” LENGTH “S” SHANK DIA. OAL FLUTES ORDER # EDP #
UNCOATED AlTiN+ UNCOATED AlTiN+
INTERNAL OR EXTERNAL THREADS
1/16, 1/8-27 0.218 0.534 0.018 0.250 2.50 4 TM218-27NPTF TM218-27NPTF-A 101004 101016
1/8-27 0.280 0.758 0.018 0.375 3.50 4 TM280-27NPTF TM280-27NPTF-A 101022 101046
1/4, 3/8-18 0.330 0.693 0.027 0.375 3.50 4 TM330-18NPTF TM330-18NPTF-A 101028 101052
1/4, 3/8-18 0.382 0.800 0.027 0.4375 3.50 4 TM382-18NPTF TM382-18NPTF-A 101058 101070
1/2, 3/4-14 0.430 1.105 0.035 0.500 3.50 4 TM430-14NPTF TM430-14NPTF-A 101076 101088
1 to 2-11½ 0.650 1.605 0.043 0.750 4.00 5 TM650-11.5NPTF TM650-11.5NPTF-A 101094 101112
2½ up-8 0.650 1.560 0.062 0.750 4.00 5 TM650-8NPTF TM650-8NPTF-A 101100 101121

all dimensions are in inches





Back to Top of Page



Staggered Tooth

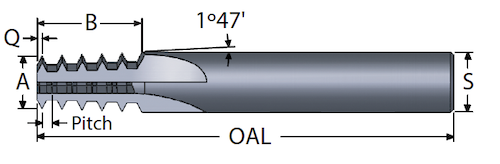

theread mill staggered tooth

  • Staggered tooth design reduces tool pressure

  • AlTiN+ coating extends tool life



STRAIGHT FLUTE - STAGGERED TOOTH - NPT
THREAD DIA. / PITCH “A” TOOL DIA. “B” LENGTH OF CUT “Q” LENGTH “S” SHANK DIA. OAL FLUTES ORDER # EDP #
UNCOATED AlTiN+ UNCOATED AlTiN+
INTERNAL OR EXTERNAL THREADS
1/16, 1/8-27 0.220 0.534 0.019 0.250 2.50 4 TM220-27NPT TM220-27NPT-A 101181 101193
1/8-27 0.275 0.758 0.019 0.375 3.50 4 TM275-27NPT TM275-27NPT-A 101199 101223
1/4, 3/8-18 0.335 0.693 0.028 0.375 3.50 4 TM335-18NPT TM335-18NPT-A 101205 101229
1/4, 3/8-18 0.387 0.805 0.028 0.4375 3.50 4 TM387-18NPT TM387-18NPT-A 101235 101247
1/2, 3/4-14 0.435 1.034 0.036 0.500 3.50 4
TM435-14NPT
TM435-14NPT-A 101253 101265
1/2, 3/4-14 0.440 1.034 0.036 0.750 6.00 4 blue diamondTM440-14NPT blue diamondTM440-14NPT-A blue diamond101271 blue diamond101283
1¼ to 2-11½ 1.000 1.742 0.044 1.000 6.00 6
blue triangleTM1.0-11.5NPT
blue triangleTM1.0-11.5NPT-A
blue triangle101289
blue triangle101301

all dimensions are in inches

blue diamond  Tool is steel shank with a solid carbide head

blue triangle Tool is carbide tipped with coolant hole to each flute

theread mill staggered tooth



STRAIGHT FLUTE - STAGGERED TOOTH- DRYSEAL - NPTF
THREAD DIA. / PITCH “A” TOOL DIA. “B” LENGTH OF CUT “Q” LENGTH “S” SHANK DIA. OAL FLUTES ORDER # EDP #
UNCOATED AlTiN+ UNCOATED AlTiN+
INTERNAL OR EXTERNAL THREADS
1/16, 1/8-27 0.220 0.534 0.019 0.250 2.50 4 TM220-27NPTF TM220-27NPTF-A 101184 101196
1/8-27 0.275 0.758 0.019 0.375 3.50 4 TM275-27NPTF TM275-27NPTF-A 101202 101226
1/4, 3/8-18 0.335 0.693 0.028 0.375 3.50 4 TM335-18NPTF TM335-18NPTF-A 101208 101232
1/4, 3/8-18 0.387 0.805 0.028 0.4375 3.50 4 TM387-18NPTF TM387-18NPTF-A 101238 101250
1/2, 3/4-14 0.435 1.034 0.036 0.500 3.50 4 TM435-14NPTF TM435-14NPTF-A 101256 101268
1/2, 3/4-14 0.440 1.034 0.036 0.750 6.00 4 blue diamondTM440-14NPTF blue diamondTM440-14NPTF-A blue diamond101274 blue diamond101286
1¼ to 2-11½ 1.000 1.700 0.044 1.00 6.00 6 blue triangleTM1.0-11.5NPTF blue triangleTM1.0-11.5NPTF-A blue triangle101292 blue triangle101304

blue diamond  Tool is steel shank with a solid carbide head

blue triangle Tool is carbide tipped with coolant hole to each flute



all dimensions are in inches







Back to Top of Page



15° Helical Flute

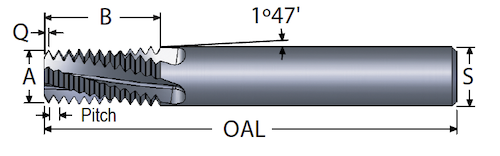

15 deg helical flute thread mill
  • Made with premium submicron grade carbide
  • AlTiN+ coating for improved surface finish

15° HELICAL FLUTE- NPT

THREAD DIA./PITCH “A” TOOL DIA. “B” LENGTH OF CUT “Q” LENGTH "S" SHANK DIA. OAL FLUTES ORDER # EDP #
UNCOATED AlTiN+ UNCOATED AlTiN+
INTERNAL OR EXTERNAL THREADS
1/16,1/8-27 0.222 0.461 0.018 0.250 2.50 3 TMX222-27-H TMX222-27-HA 101351 101354
1/4,3/8-18 0.270 0.636 0.027 0.312 2.50 4 TMX270-18-H TMX270-18-HA 101357 101360
1/2,3/4-14 0.440 0.890 0.035 0.500 4.00 4 TMX440-14-H TMX440-14-HA 101363 101366
1" to 2"-11.5 0.550 1.171 0.043 0.625 4.00 4 TMX550-11.5-H TMX550-11.5-HA 101369 101372



30 degreee helical flute thread mill
  • AlTiN+ coating extends tool life
  • Helical flute for reduced side cutting pressure

30° HELICAL FLUTE - NPT

THREAD DIA. / PITCH “A” TOOL DIA. “B” LENGTH OF CUT “Q” LENGTH “S” SHANK DIA. OAL FLUTES ORDER # EDP #
UNCOATED AlTiN+ UNCOATED AlTiN+
INTERNAL OR EXTERNAL THREADS
1/16,1/8-27 0.218 0.534 0.018 0.250 2.50 4 TM218-27NPT-H TM218-27NPT-HA 101404 101416
1/8-27 0.280 0.758 0.018 0.375 3.50 4 TM280-27NPT-H TM280-27NPT-HA 101422 101446
1/4, 3/8-18 0.330 0.693 0.027 0.375 3.50 4 TM330-18NPT-H TM330-18NPT-HA 101428 101452
1/4, 3/8-18 0.382 0.800 0.027 0.4375 3.50 4 TM382-18NPT-H TM382-18NPT-HA 101458 101470
1/2, 3/4-14 0.430 1.105 0.035 0.500 3.50 4 TM430-14NPT-H TM430-14NPT-HA 101476 101488



30 degreee helical flute thread mill
  • Polished flute face for optimum performance
  • AlTiN+ coated tool for higher cutting speed

30° HELICAL FLUTE - NPTF - DRYSEAL

THREAD DIA. / PITCH “A” TOOL DIA. “B” LENGTH OF CUT “Q” LENGTH “S” SHANK DIA. OAL FLUTES ORDER # EDP #
UNCOATED AlTiN+ UNCOATED AlTiN+
INTERNAL OR EXTERNAL THREADS
1/16, 1/8-27 0.218 0.534 0.018 0.250 2.50 4 TM218-27NPTF-H TM218-27NPTF-HA 101401 101413
1/8-27 0.280 0.758 0.018 0.375 3.50 4 TM280-27NPTF-H TM280-27NPTF-HA 101419 101443
1/4, 3/8-18 0.330 0.693 0.027 0.375 3.50 4 TM330-18NPTF-H TM330-18NPTF-HA 101425 101449
1/4, 3/8-18 0.382 0.800 0.027 0.4375 3.50 4 TM382-18NPTF-H TM382-18NPTF-HA 101455 101467
1/2, 3/4-14 0.430 1.105 0.035 0.500 3.50 4 TM430-14NPTF-H TM430-14NPTF-HA 101473 101485







NPT/NPTF Thread Mills

Back to Top of Page
