UN THREAD MILLS

long reach thread mill

LONG REACH (TMLR) - SOLID CARBIDE- FULL PROFILE

Long reach thread mills have three teeth  ( four for the larger sizes ) and a helical flute that excel in internal deep threads and hard-to-cut materials.

  • Small thread milling is made easy with TMLR tools

  • Economical cost per hole

  • Minimal cutting pressure

  • AlTiN+ coating for higher Surface Feet per Minute

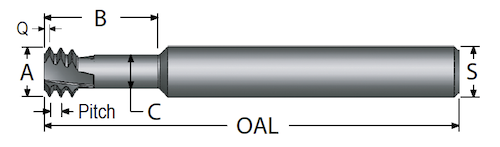

tmlr dimensions



  “A” TOOL DIA. “B” LENGTH OF CUT “C” NECK DIA. “Q” LENGTH “S” SHANK DIA. OAL FLUTES ORDER # EDP #
UNCOATED AlTiN+ UNCOATED AlTiN+
INTERNAL THREADS ONLY
0-80 0.042 0.120 0.024 0.006 0.250 2.50 3 TMLR042-80 TMLR042-80A 110883 110885
0-80 0.042 0.180 0.024 0.006 0.250 2.50 3 TMLR042-80EL TMLR042-80ELA 110887 110889
1-64 0.052 0.150 0.030 0.006 0.250 2.50 3 TMLR052-64 TMLR052-64A 110891 110893
1-64 0.052 0.210 0.030 0.006 0.250 2.50 3 TMLR052-64EL TMLR052-64ELA 110895 110897
1-72 0.052 0.180 0.033 0.007 0.250 2.50 3 TMLR052-72 TMLR052-72A 110899 110901
1-72 0.052 0.250 0.033 0.007 0.250 2.50 3 TMLR052-72EL TMLR052-72ELA 110903 110905
2-56 0.065 0.180 0.039 0.009 0.250 2.50 3 TMLR065-56 TMLR065-56A 110501 110603
2-56 0.065 0.300 0.039 0.009 0.250 2.50 3 TMLR065-56EL TMLR065-56ELA 110504 110606
2-56 0.065 0.290 0.039 0.009 0.250 2.50 3 TMLR065-56XL TMLR065-56XLA 110505 110607
3-48 0.073 0.200 0.044 0.010 0.250 2.50 3 TMLR073-48 TMLR073-48A 110907 110909
3-48 0.073 0.280 0.044 0.010 0.250 2.50 3 TMLR073-48EL TMLR073-48EL 110911 110913
4-40 0.082 0.225 0.046 0.013 0.250 2.50 3 TMLR082-40 TMLR082-40A 110507 110609
4-40 0.082 0.300 0.046 0.013 0.250 2.50 3 TMLR082-40EL TMLR082-40ELA 110510 110612
4-40 0.082 0.400 0.046 0.013 0.250 2.50 3 TMLR082-40XL TMLR082-40XLA 110915 110917
6-32 0.100 0.260 0.056 0.016 0.250 2.50 3 TMLR100-32 TMLR100-32A 110513 110615
6-32 0.100 0.400 0.056 0.016 0.250 2.50 3 TMLR100-32EL TMLR100-32ELA 110516 110618
6-32 0.100 0.540 0.056 0.016 0.250 2.50 3 TMLR100-32XL TMLR100-32XLA 110919 110921
6-40 0.100 0.260 0.065 0.013 0.250 2.50 3 TMLR100-40 TMLR100-40A 110519 110621
6-40 0.100 0.400 0.065 0.013 0.250 2.50 3 TMLR100-40EL TMLR100-40ELA 110522 110624
6-40 0.100 0.540 0.065 0.013 0.250 2.50 3 TMLR100-40XL TMLR100-40XLA 110923 110925
8-32 0.126 0.300 0.080 0.016 0.250 2.50 3 TMLR126-32 TMLR126-32A 110525 110627
8-32 0.126 0.500 0.080 0.016 0.250 2.50 3 TMLR126-32EL TMLR126-32ELA 110528 110630
8-32 0.126 0.700 0.085 0.016 0.250 2.50 3 TMLR126-32XL TMLR126-32XLA 110927 110929
8-36 0.126 0.300 0.085 0.014 0.250 2.50 3 TMLR126-36 TMLR126-36A 110531 110633
8-36 0.126 0.500 0.085 0.014 0.250 2.50 3 TMLR126-36EL TMLR126-36ELA 110534 110636
10-24 0.139 0.400 0.080 0.021 0.250 2.50 3 TMLR139-24 TMLR139-24A 110537 110639
10-24 0.139 0.600 0.080 0.021 0.250 2.50 3 TMLR139-24EL TMLR139-24ELA 110540 110642
10-24 0.139 0.750 0.080 0.021 0.250 2.50 3 TMLR139-24XL TMLR139-24XLA 110935 110937
10-32 0.139 0.400 0.093 0.016 0.250 2.50 3 TMLR139-32 TMLR139-32A 110543 110645
10-32 0.139 0.600 0.093 0.016 0.250 2.50 3 TMLR139-32EL TMLR139-32ELA 110546 110648
10-32 0.139 0.750 0.093 0.016 0.250 2.50 3 TMLR139-32XL TMLR139-32XLA 110939 110941
10-48 0.139 0.400 0.106 0.010 0.250 2.50 3 TMLR139-48 TMLR139-48A 110549 110651
10-48 0.139 0.600 0.106 0.010 0.250 2.50 3 TMLR139-48EL TMLR139-48ELA 110552 110654
1/4-20 0.186 0.500 0.112 0.025 0.250 2.50 3 TMLR186-20 TMLR186-20A 110555 110657
1/4-20 0.186 0.700 0.112 0.025 0.250 2.50 3 TMLR186-20EL TMLR186-20ELA 110558 110660
1/4-20 0.186 0.900 0.112 0.025 0.250 2.50 3 TMLR186-20XL TMLR186-20XLA 110947 110949
1/4-28 0.186 0.500 0.130 0.018 0.250 2.50 3 TMLR186-28 TMLR186-28A 110561 110663
1/4-28 0.186 0.700 0.130 0.018 0.250 2.50 3 TMLR186-28EL TMLR186-28ELA 110564 110666
1/4-28 0.186 0.900 0.130 0.018 0.250 2.50 3 TMLR186-28XL TMLR186-28XLA 110951 110953
1/4-32 0.186 0.500 0.140 0.016 0.250 2.50 3 TMLR186-32 TMLR186-32A 110567 110669
1/4-32 0.186 0.700 0.140 0.016 0.250 2.50 3 TMLR186-32EL TMLR186-32ELA 110570 110672
1/4-32 0.186 0.900 0.140 0.016 0.250 2.50 3 TMLR186-32XL TMLR186-32XLA 110955 110957
5/16-18 0.234 0.600 0.156 0.028 0.250 2.50 3 TMLR234-18 TMLR234-18A 110573 110675
5/16-18 0.234 0.850 0.156 0.028 0.250 2.50 3 TMLR234-18EL TMLR234-18ELA 110576 110678
5/16-18 0.234 1.100 0.156 0.028 0.250 2.50 3 TMLR234-18XL TMLR234-18XLA 110959 110961
5/16-24 0.234 0.600 0.176 0.021 0.250 2.50 3 TMLR234-24 TMLR234-24A 110579 110681
5/16-24 0.234 0.850 0.176 0.021 0.250 2.50 3 TMLR234-24EL TMLR234-24ELA 110582 110684
5/16-24 0.234 1.100 0.176 0.021 0.250 2.50 3 TMLR234-24XL TMLR234-24XLA 110963 110965
5/16-28 0.234 0.600 0.180 0.018 0.250 2.50 3 TMLR234-28 TMLR234-28A 110585 110687
5/16-28 0.234 0.850 0.180 0.018 0.250 2.50 3 TMLR234-28EL TMLR234-28ELA 110588 110690
5/16-28 0.234 1.100 0.180 0.018 0.250 2.50 3 TMLR234-28XL TMLR234-28XLA 110967 110969



all dimensions are in inches

Single profile thread mills can cut any larger size internal thread within the recommended TPI



Back to Top of Page





UN THREAD MILLS
LONG REACH (TMLR) - SOLID CARBIDE - FULL PROFILE

  • Cuts UNC, UNF, UNEF, and UNS threads

  • Cuts UNJ threads (internal only)

  • Excels in difficult-to-thread materials

  • AlTiN+ coating extends tool life

long reach thread mill

MIN ID THREAD
/PITCH *		 “A” TOOL DIA. “B” LENGTH OF CUT “C” NECK DIA. “Q” LENGTH “S” SHANK DIA. OAL FLUTES ORDER # EDP #
UNCOATED AlTiN+ UNCOATED AlTiN+
INTERNAL THREADS ONLY
5/16-32 0.234 0.600 0.188 0.016 0.250 2.50 3 TMLR234-32 TMLR234-32A 110591 110693
5/16-32 0.234 0.850 0.188 0.016 0.250 2.50 3 TMLR234-32EL TMLR234-32ELA 110594 110696
5/16-32 0.234 1.100 0.188 0.016 0.250 2.50 3 TMLR234-32XL TMLR234-32XLA 110971 110973
5/16-40 0.234 0.600 0.194 0.013 0.250 2.50 3 TMLR234-40 TMLR234-40A 110597 110699
5/16-40 0.234 0.850 0.194 0.013 0.250 2.50 3 TMLR234-40EL TMLR234-40ELA 110600 110702
5/16-40 0.234 1.100 0.194 0.013 0.250 2.50 3 TMLR234-40XL TMLR234-40XLA 110975 110977
3/8-16 0.285 0.750 0.191 0.031 0.375 3.50 3 TMLR285-16 TMLR285-16A 110705 110771
3/8-16 0.285 1.000 0.191 0.031 0.375 3.50 3 TMLR285-16EL TMLR285-16ELA 110708 110774
3/8-16 0.285 1.400 0.191 0.031 0.375 3.50 3 TMLR285-16XL TMLR285-16XLA 110979 110981
3/8-24 0.285 0.750 0.222 0.021 0.375 3.50 3 TMLR285-24 TMLR285-24A 110711 110777
3/8-24 0.285 1.000 0.222 0.021 0.375 3.50 3 TMLR285-24EL TMLR285-24ELA 110714 110780
3/8-24 0.285 1.400 0.222 0.021 0.375 3.50 3 TMLR285-24XL TMLR285-24XLA 110983 110985
3/8-32 0.285 0.750 0.235 0.016 0.375 3.50 3 TMLR285-32 TMLR285-32A 110717 110783
3/8-32 0.285 1.000 0.235 0.016 0.375 3.50 3 TMLR285-32EL TMLR285-32ELA 110720 110786
7/16-14 0.340 0.800 0.235 0.036 0.375 3.50 3 TMLR340-14 TMLR340-14A 110723 110789
7/16-14 0.340 1.200 0.235 0.036 0.375 3.50 3 TMLR340-14EL TMLR340-14ELA 110726 110792
7/16-14 0.340 1.700 0.235 0.036 0.375 3.50 3 TMLR340-14XL TMLR340-14XLA 110991 110993
7/16-18 0.340 0.800 0.258 0.028 0.375 3.50 3 TMLR340-18 TMLR340-18A 110729 110795
7/16-18 0.340 1.200 0.258 0.028 0.375 3.50 3 TMLR340-18EL TMLR340-18ELA 110732 110798
7/16-20 0.340 0.800 0.265 0.025 0.375 3.50 3 TMLR340-20 TMLR340-20A 110735 110801
7/16-20 0.340 1.200 0.265 0.025 0.375 3.50 3 TMLR340-20EL TMLR340-20ELA 110738 110804
7/16-20 0.340 1.700 0.265 0.025 0.375 3.50 3 TMLR340-20XL TMLR340-20XLA 110999 111001
1/2-12 0.370 0.800 0.245 0.042 0.375 3.50 3 TMLR370-12 TMLR370-12A 110741 110807
1/2-12 0.370 1.200 0.245 0.042 0.375 3.50 3 TMLR370-12EL TMLR370-12ELA 110744 110810
1/2-12 0.370 1.800 0.245 0.042 0.375 3.50 3 TMLR370-12XL TMLR370-12XLA 111003 111005
1/2-13 0.370 0.800 0.255 0.038 0.375 3.50 3 TMLR370-13 TMLR370-13A 110747 110813
1/2-13 0.370 1.200 0.255 0.038 0.375 3.50 3 TMLR370-13EL TMLR370-13ELA 110750 110816
1/2-13 0.370 1.800 0.255 0.038 0.375 3.50 3 TMLR370-13XL TMLR370-13XLA 111007 111009
1/2-18 0.370 0.800 0.287 0.028 0.375 3.50 3 TMLR370-18 TMLR370-18A 110753 110819
1/2-18 0.370 1.200 0.287 0.028 0.375 3.50 3 TMLR370-18EL TMLR370-18ELA 110756 110822
1/2-20 0.370 0.800 0.295 0.025 0.375 3.50 3 TMLR370-20 TMLR370-20A 110759 110825
1/2-20 0.370 1.200 0.295 0.025 0.375 3.50 3 TMLR370-20EL TMLR370-20ELA 110762 110828
1/2-20 0.370 1.800 0.295 0.025 0.375 3.50 3 TMLR370-20XL TMLR370-20XLA 111015 111017
1/2-32 0.370 0.800 0.315 0.016 0.375 3.50 3 TMLR370-32 TMLR370-32A 110765 110831
1/2-32 0.370 1.200 0.315 0.016 0.375 3.50 3 TMLR370-32EL TMLR370-32ELA 110768 110834
5/8-11 0.470 1.200 0.335 0.045 0.500 4.00 4 TMLR470-11 TMLR470-11A 110837 110861
5/8-11 0.470 1.750 0.335 0.045 0.500 4.00 4 TMLR470-11EL TMLR470-11ELA 110840 110864
5/8-11 0.470 2.300 0.335 0.045 0.500 4.00 4 TMLR470-11XL TMLR470-11XLA 111023 111025
3/4-10 0.495 1.200 0.345 0.050 0.500 4.00 4 TMLR495-10 TMLR495-10A 110843 110867
3/4-10 0.495 1.750 0.345 0.050 0.500 4.00 4 TMLR495-10EL TMLR495-10ELA 110846 110870
3/4-10 0.495 2.400 0.345 0.050 0.500 4.00 4 TMLR495-10XL TMLR495-10XLA 111027 111029
3/4-12 0.495 1.200 0.370 0.042 0.500 4.00 4 TMLR495-12 TMLR495-12A 110849 110873
3/4-12 0.495 1.750 0.370 0.042 0.500 4.00 4 TMLR495-12EL TMLR495-12ELA 110852 110876
3/4-12 0.495 2.400 0.370 0.042 0.500 4.00 4 TMLR495-12XL TMLR495-12AXLA 111031 111033
3/4-16 0.495 1.200 0.395 0.031 0.500 4.00 4 TMLR495-16 TMLR495-16A 110855 110879
3/4-16 0.495 1.750 0.395 0.031 0.500 4.00 4 TMLR495-16EL TMLR495-16ELA 110858 110882
3/4-16 0.495 2.400 0.395 0.031 0.500 4.00 4 TMLR495-16XL TMLR495-16XLA 111035 111037

all dimensions are in inches

Single profile thread mills can cut any larger size internal thread within the recommended TPI





TMLR- UN
