UN Thread Mills 15 degree Helical Flute Solid Carbide

The 15° helical flute thread mills are non-crest cutting for internal threads only. The helical flutes distribute the side cutting pressure.

  • Cuts internal UNC, UNF, UNEF, UNS and UNJ threads

  • Non-crest cutting allows maximum flexibility for plated and non-standard threads

  • Long length-of-cut



MIN ID THREAD

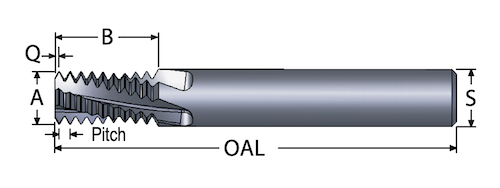

/ PITCH*		 “A” TOOL DIA. “B” LENGTH OF CUT “Q” LENGTH “S” SHANK DIA. OAL FLUTES ORDER # EDP #
UNCOATED AlTiN+ UNCOATED AlTiN+
INTERNAL THREADS ONLY
4-40 0.079 0.185 0.011 0.250 2.50 2 TMI079-40H TMI079-40HA 102901 102937
6-32 0.100 0.263 0.014 0.250 2.50 3 TMI100-32H TMI100-32HA 102904 102940
8-32 0.115 0.263 0.014 0.250 2.50 3 TMI115-32H TMI115-32HA 102907 102943
10-24 0.120 0.351 0.019 0.250 2.50 3 TMI120-24H TMI120-24HA 102910 102946
10-28 0.120 0.336 0.016 0.250 2.50 3 TMI120-28H TMI120-28HA 102913 102949
10-32 0.120 0.326 0.014 0.250 2.50 3 TMI120-32H TMI120-32HA 102916 102952
1/4-20 0.180 0.521 0.023 0.250 2.50 3 TMI180-20H TMI180-20HA 102919 102955
1/4-28 0.180 0.515 0.016 0.250 2.50 3 TMI180-28H TMI180-28HA 102922 102958
5/16-18 0.234 0.632 0.025 0.250 2.50 3 TMI234-18H TMI234-18HA 102925 102961
5/16-24 0.234 0.641 0.019 0.250 2.50 3 TMI234-24H TMI234-24HA 102928 102964
5/16-32 0.234 0.638 0.014 0.250 2.50 3 TMI234-32H TMI234-32HA 102931 102967
5/16-40 0.234 0.635 0.011 0.250 2.50 3 TMI234-40H TMI234-40HA 102934 102970
3/8-16 0.285 0.775 0.028 0.3125 3.00 4 TMI285-16H TMI285-16HA 102973 102988
3/8-20 0.285 0.770 0.023 0.3125 3.00 4 TMI285-20H TMI285-20HA 102976 102991
3/8-24 0.285 0.766 0.019 0.3125 3.00 4 TMI285-24H TMI285-24HA 102979 102994
3/8-32 0.285 0.763 0.014 0.3125 3.00 4 TMI285-32H TMI285-32HA 102982 102997
7/16-14 0.305 0.886 0.032 0.3125 3.00 4 TMI305-14H TMI305-14HA 102985 103000
7/16-18 0.335 0.888 0.025 0.375 3.00 4 TMI335-18H TMI335-18HA 103003 103021
7/16-20 0.335 0.870 0.023 0.375 3.00 4 TMI335-20H TMI335-20HA 103006 103024
1/2-13 0.350 0.877 0.035 0.375 3.00 4 TMI350-13H TMI350-13HA 103009 103027
9/16-12 0.370 0.867 0.038 0.375 3.00 4 TMI370-12H TMI370-12HA 103012 103030
9/16-18 0.370 0.911 0.025 0.375 3.00 4 TMI370-18H TMI370-18HA 103015 103033
1/2-20 0.370 0.870 0.023 0.375 3.00 4 TMI370-20H TMI370-20HA 103016 103034
9/16-32 0.370 0.888 0.014 0.375 3.00 4 TMI370-32H TMI370-32HA 103018 103036
5/8-11 0.470 1.309 0.041 0.500 4.00 4 TMI470-11H TMI470-11HA 103039 103063
3/4-10 0.495 1.340 0.045 0.500 4.00 4 TMI495-10H TMI495-10HA 103042 103066
3/4-12 0.495 1.283 0.038 0.500 4.00 4 TMI495-12H TMI495-12HA 103045 103069
3/4-14 0.495 1.314 0.032 0.500 4.00 4 TMI495-14H TMI495-14HA 103048 103072
3/4-16 0.495 1.338 0.028 0.500 4.00 4 TMI495-16H TMI495-16HA 103051 103075
3/4-18 0.495 1.300 0.025 0.500 4.00 4 TMI495-18H TMI495-18HA 103054 103078
3/4-20 0.495 1.320 0.023 0.500 4.00 4 TMI495-20H TMI495-20HA 103057 103081
3/4-32 0.495 1.325 0.014 0.500 4.00 4 TMI495-32H TMI495-32HA 103060 103084
7/8-9 0.620 1.489 0.049 0.625 4.00 5 TMI620-9H TMI620-9HA 103099 103114
1.0-8 0.620 1.550 0.056 0.625 4.00 5 TMI620-8H TMI620-8HA 103096 103111
1.0-12 0.620 1.534 0.038 0.625 4.00 5 TMI620-12H TMI620-12HA 103087 103102
1.0-14 0.620 1.529 0.032 0.625 4.00 5 TMI620-14H TMI620-14HA 103090 103105
1.0-16 0.620 1.525 0.028 0.625 4.00 5 TMI620-16H TMI620-16HA 103093 103108

Thread mills can cut any larger size internal thread of the same pitch





15° Helical Flute - UN
