UN THREAD MILLS - STAGGERED TOOTH

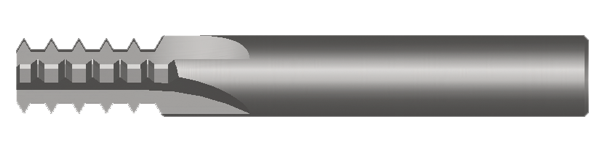

staggered tooth thread mill

Staggered tooth thread mills will cut internal and external threads.

Every other tooth removed in a staggered pattern for reduced side cutting pressure.





STRAIGHT FLUTE - STAGGERED TOOTH - SOLID CARBIDE

  • Staggered tooth design reduces tool pressure

  • Non-crest cutting for max thread size adjustability

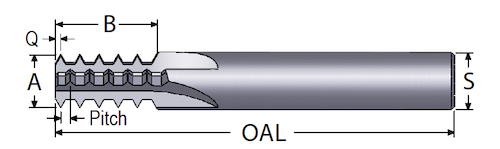

staggered tooth thread mill

MIN ID THREAD
/ PITCH*		 “A” TOOL DIA. “B” LENGTH OF CUT “Q” LENGTH “S” SHANK DIA. OAL FLUTES ORDER # EDP #
UNCOATED AlTiN+ UNCOATED AlTiN+
INTERNAL OR EXTERNAL THREADS
3/8-20 0.250 0.675 0.027 0.250 2.50 4 TM250-20 TM250-20A 102651 102687
3/8-24 0.250 0.687 0.024 0.250 2.50 4 TM250-24 TM250-24A 102654 102690
3/8-28 0.250 0.661 0.020 0.250 2.50 4 TM250-28 TM250-28A 102657 102693
3/8-32 0.250 0.672 0.017 0.250 2.50 4 TM250-32 TM250-32A 102660 102696
3/8-36 0.250 0.682 0.016 0.250 2.50 4 TM250-36 TM250-36A 102663 102699
3/8-40 0.250 0.662 0.014 0.250 2.50 4 TM250-40 TM250-40A 102666 102702



all dimensions are in inches

Thread mills can cut any larger size internal thread of the same pitch



Back to Top of Page





STRAIGHT FLUTE - STAGGERED TOOTH - CARBIDE HEAD

Non-crest cutting design cuts internal and external threads

  • Cuts UNC, UNF, UNEF, and UNS threads

  • Cuts UNJ threads (internal only)

  • Non-crest cutting design cuts internal and external threads

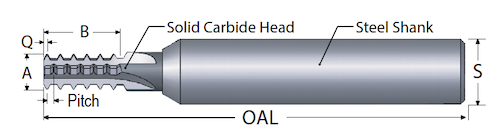

staggered carbide head thread mill

MIN ID THREAD
/ PITCH*		 “A” TOOL DIA. “B” LENGTH OF CUT “Q” LENGTH “S” SHANK DIA. OAL FLUTES ORDER # EDP #
UNCOATED AlTiN+ UNCOATED AlTiN+
INTERNAL OR EXTERNAL THREADS
7/16-16 0.350 0.783 0.036 0.750 6.00 4 TM350-16 TM350-16A 102705 102747
7/16-18 0.350 0.807 0.032 0.750 6.00 4 TM350-18 TM350-18A 102708 102750
7/16-20 0.350 0.823 0.027 0.750 6.00 4 TM350-20 TM350-20A 102711 102753
7/16-24 0.350 0.856 0.024 0.750 6.00 4 TM350-24 TM350-24A 102714 102756
5/8-12 0.500 1.042 0.046 0.750 6.00 4 TM500-12 TM500-12A 102717 102759
5/8-14 0.500 1.037 0.040 0.750 6.00 4 TM500-14 TM500-14A 102720 102762
5/8-16 0.500 1.033 0.036 0.750 6.00 4 TM500-16 TM500-16A 102723 102765



all dimensions are in inches

Thread mills can cut any larger size internal thread of the same pitch

Back to Top of Page





COOLANT THROUGH THREAD MILLS
STRAIGHT FLUTE - STAGGERED TOOTH - CARBIDE TIPPED

  • AlTiN+ coating extends tool life

  • Ideal for plated thread applications

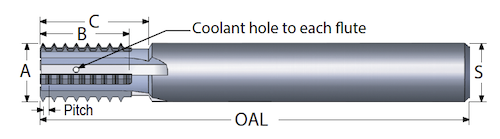

staggered tooth carbide tipped thread mill

MIN ID THREAD
/ PITCH*		 “A” TOOL DIA. “B” LENGTH OF CUT “C” TOOL REACH “Q” LENGTH “S” SHANK DIA. OAL FLUTES ORDER # EDP #
UNCOATED AlTiN+ UNCOATED AlTiN+
INTERNAL OR EXTERNAL THREADS
1-12 0.750 1.176 1.370 0.048 0.750 6.00 4 TMC750-12 TMC750-12A 102801 102825
1-14 0.750 1.152 1.370 0.042 0.750 6.00 4 TMC750-14 TMC750-14A 102804 102828
1-18 0.750 1.117 1.370 0.032 0.750 6.00 4 TMC750-18 TMC750-18A 102807 102831
1-20 0.750 1.106 1.370 0.029 0.750 6.00 4 TMC750-20 TMC750-20A 102810 102834
1½-12 1.000 1.176 2.000 0.047 1.000 6.00 6 TMC1000-12 TMC1000-12A 102837 102849
1½-16 1.000 1.196 2.000 0.037 1.000 6.00 6 TMC1000-16 TMC1000-16A 102840 102852



all dimensions are in inches

Thread mills can cut any larger size internal thread of the same pitch



UN Staggered Tooth

Back to Top of Page
