UN Thread Mills Straight Flute

straight flute thread mill

UN THREAD MILLS - STRAIGHT FLUTE

STRAIGHT FLUTE - SOLID CARBIDE - FULL PROFILE

Straight flute thread mills come in a large variety of sizes and are crest cutting for internal threads only.

Optional short length-of-cut for ideal length-to-diameter ratio

Cuts UNC, UNF, UNEF, UNS, and UNJ (internal only)

Internal crest cutting design provides strongest possible tooling

AlTiN+ for ferrous, TaC coating for non-ferrous materials

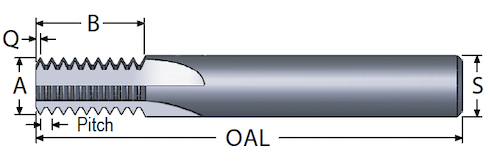

thread mill straigbt flute

MIN ID THREAD/ PITCH* “A” TOOL DIA. “B” LENGTH OF CUT “Q” LENGTH “S” SHANK DIA. OAL FLUTES ORDER # EDP #
UNCOATED UNCOATED AlTiN+ TaC
INTERNAL THREADS ONLY
4-40 0.080 0.210 0.011 0.250 2.50 3 TM080-40 101501 101675 130000
4-40 0.080 0.136 0.011 0.250 2.50 3 TM080-40S 102051 102189 130100
6-32 0.098 0.263 0.013 0.250 2.50 3 TM098-32 101504 101678 130001
6-32 0.098 0.201 0.013 0.250 2.50 3 TM098-32S 102054 102192 130101
6-40 0.098 0.260 0.011 0.250 2.50 3 TM098-40 101507 101681 130002
6-40 0.098 0.186 0.011 0.250 2.50 3 TM098-40S 102057 102195 130102
8-32 0.110 0.325 0.013 0.250 2.50 3 TM110-32 101510 101684 130003
8-32 0.110 0.232 0.013 0.250 2.50 3 TM110-32S 102060 102198 130103
8-36 0.110 0.345 0.012 0.250 2.50 3 TM110-36 101513 101687 130004
8-36 0.110 0.234 0.012 0.250 2.50 3 TM110-36S 102063 102201 130104
8-24 0.125 0.350 0.017 0.250 2.50 3 TM125-24 101516 101690 130005
8-24 0.125 0.226 0.017 0.250 2.50 3 TM125-24S 102066 102204 130105
8-32 0.125 0.355 0.013 0.250 2.50 3 TM125-32 101519 101693 130006
8-32 0.125 0.232 0.013 0.250 2.50 3 TM125-32S 102069 102207 130106
10-24 0.140 0.392 0.017 0.250 2.50 3 TM140-24 101522 101696 130007
10-24 0.140 0.268 0.017 0.250 2.50 3 TM140-24S 102072 102210 130107
10-28 0.140 0.409 0.015 0.250 2.50 3 TM140-28 101525 101699 130008
10-28 0.140 0.265 0.015 0.250 2.50 3 TM140-28S 102075 102213 130108
10-32 0.140 0.388 0.013 0.250 2.50 3 TM140-32 101528 101702 130009
10-32 0.140 0.263 0.013 0.250 2.50 3 TM140-32S 102078 102216 130109
10-48 0.140 0.383 0.009 0.250 2.50 3 TM140-48 101531 101705 130010
10-48 0.140 0.259 0.009 0.250 2.50 3 TM140-48S 102081 102219 130110
1/4-20 0.170 0.570 0.021 0.250 2.50 3 TM170-20 101534 101708 130011
1/4-20 0.170 0.371 0.021 0.250 2.50 3 TM170-20S 102084 102222 130111
1/4-24 0.170 0.559 0.017 0.250 2.50 3 TM170-24 101537 101711 130012
1/4-24 0.170 0.393 0.017 0.250 2.50 3 TM170-24S 102087 102225 130112
1/4-28 0.170 0.552 0.015 0.250 2.50 3 TM170-28 101540 101714 130013
1/4-28 0.170 0.372 0.015 0.250 2.50 3 TM170-28S 102090 102228 130113
1/4-32 0.170 0.545 0.013 0.250 2.50 3 TM170-32 101543 101717 130014
1/4-32 0.170 0.388 0.013 0.250 2.50 3 TM170-32S 102093 102231 130114
1/4-36 0.170 0.540 0.012 0.250 2.50 3 TM170-36 101546 101720 130015
1/4-36 0.170 0.373 0.012 0.250 2.50 3 TM170-36S 102096 102234 130115
1/4-20 0.187 0.570 0.021 0.250 2.50 3 TM187-20 101549 101723 130016
1/4-20 0.187 0.371 0.021 0.250 2.50 3 TM187-20S 102099 102237 130116
1/4-24 0.187 0.559 0.017 0.250 2.50 3 TM187-24 101552 101726 130017
1/4-24 0.187 0.393 0.017 0.250 2.50 3 TM187-24S 102102 102240 130117
1/4-28 0.187 0.551 0.015 0.250 2.50 3 TM187-28 101555 101729 130018
1/4-28 0.187 0.372 0.015 0.250 2.50 3 TM187-28S 102105 102243 130118

all dimensions are in inches

Single profile thread mills can cut any larger size internal thread within the recommended TPI





Back to Top of Page



UN Thread Mills
Straight Flute - Solid Carbide

AlTiN+ for ferrous, TaC coating for non-ferrous materials

Internal threads only

Full Profile

thread mill straigbt flute

MIN ID THREAD
/ PITCH*		 “A” TOOL DIA. “B” LENGTH OF CUT “Q” LENGTH “S” SHANK DIA. OAL FLUTES ORDER # EDP #
UNCOATED UNCOATED AlTiN+ TaC
INTERNAL THREADS ONLY
1/4-32 0.187 0.545 0.013 0.250 2.50 3 TM187-32 101558 101732 130019
1/4-32 0.187 0.388 0.013 0.250 2.50 3 TM187-32S 102108 102246 130119
1/4-36 0.187 0.540 0.012 0.250 2.50 3 TM187-36 101561 101735 130020
1/4-36 0.187 0.373 0.012 0.250 2.50 3 TM187-36S 102111 102249 130120
1/4-40 0.187 0.560 0.011 0.250 2.50 3 TM187-40 101564 101738 130021
1/4-40 0.187 0.386 0.011 0.250 2.50 3 TM187-40S 102114 102252 130121
1/4-48 0.187 0.551 0.009 0.250 2.50 3 TM187-48 101567 101741 130022
1/4-48 0.187 0.384 0.009 0.250 2.50 3 TM187-48S 102117 102255 130122
5/16-18 0.235 0.689 0.023 0.250 2.50 3 TM235-18 101570 101744 130023
5/16-20 0.235 0.670 0.021 0.250 2.50 3 TM235-20 101573 101747 130024
5/16-24 0.235 0.684 0.017 0.250 2.50 3 TM235-24 101576 101750 130025
5/16-28 0.235 0.657 0.015 0.250 2.50 3 TM235-28 101579 101753 130026
5/16-32 0.235 0.669 0.013 0.250 2.50 3 TM235-32 101582 101756 130027
5/16-40 0.235 0.660 0.011 0.250 2.50 3 TM235-40 101585 101759 130028
3/8-16 0.290 0.775 0.026 0.3125 3.50 4 TM290-16 101777 101792 130029
3/8-20 0.290 0.820 0.021 0.3125 3.50 4 TM290-20 101780 101795 130030
3/8-24 0.290 0.809 0.017 0.3125 3.50 4 TM290-24 101783 101798 130031
3/8-27 0.290 0.794 0.015 0.3125 3.50 4 TM290-27 101786 101801 130032
3/8-32 0.290 0.794 0.013 0.3125 3.50 4 TM290-32 101789 101804 130033
7/16-14 0.345 0.816 0.030 0.375 3.50 4 TM345-14 101807 101837 130034
7/16-18 0.345 0.800 0.023 0.375 3.50 4 TM345-18 101810 101840 130035
7/16-20 0.345 0.821 0.021 0.375 3.50 4 TM345-20 101813 101843 130036
7/16-24 0.345 0.809 0.017 0.375 3.50 4 TM345-24 101816 101846 130037
7/16-28 0.345 0.800 0.015 0.375 3.50 4 TM345-28 101819 101849 130038
9/16-12 0.400 1.117 0.035 0.500 3.50 4 TM400-12 101852 101948 130039
1/2-13 0.400 1.108 0.032 0.500 3.50 4 TM400-13 101855 101951 130040
1/2-16 0.400 1.087 0.026 0.500 3.50 4 TM400-16 101858 101954 130041
1/2-20 0.400 1.120 0.021 0.500 3.50 4 TM400-20 101861 101957 130042
1/2-24 0.400 1.100 0.017 0.500 3.50 4 TM400-24 101864 101960 130043
1/2-28 0.400 1.087 0.015 0.500 3.50 4 TM400-28 101867 101963 130044
1/2-32 0.400 1.106 0.013 0.500 3.50 4 TM400-32 101870 101966 130045
3/4-10 0.450 1.140 0.042 0.500 3.50 4 TM450-10 101873 101969 130046
5/8-11 0.450 1.127 0.039 0.500 3.50 4 TM450-11 101876 101972 130047
5/8-12 0.450 1.117 0.035 0.500 3.50 4 TM450-12 101879 101975 130048
9/16-16 0.450 1.087 0.026 0.500 3.50 4 TM450-16 101882 101978 130049
9/16-18 0.450 1.134 0.023 0.500 3.50 4 TM450-18 101885 101981 130050
9/16-20 0.450 1.120 0.021 0.500 3.50 4 TM450-20 101888 101984 130051
3/4-12 0.490 1.117 0.035 0.500 3.50 6 TM490-12 101891 101987 130052
5/8-14 0.490 1.100 0.030 0.500 3.50 6 TM490-14 101894 101990 130053
5/8-16 0.490 1.087 0.026 0.500 3.50 6 TM490-16 101897 101993 130054
1.0-8 0.620 1.177 0.052 0.625 3.50 6 TM620-8 102005 102035 130058
7/8-9 0.620 1.157 0.046 0.625 3.50 6 TM620-9 102008 102038 130059
7/8-12 0.620 1.117 0.035 0.625 3.50 6 TM620-12 101996 102026 130055
7/8-14 0.620 1.100 0.030 0.625 3.50 6 TM620-14 101999 102029 130056
7/8-16 0.620 1.087 0.026 0.625 3.50 6 TM620-16 102002 102032 130057

all dimensions are in inches

Single profile thread mills can cut any larger size internal thread within the recommended TPI

Back to Top of Page





UN THREAD MILLS
COOLANT THROUGH - SOLID CARBIDE FULL PROFILE

AlTiN+ coating for higher cutting speed

Coolant to each flute

Cuts UNC, UNF, UNEF, and UNS threads Cuts UNJ threads (internal only)

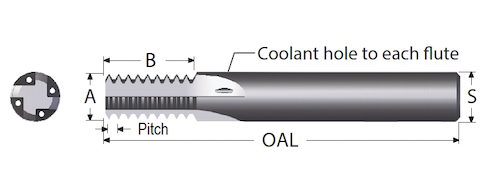

thread mill straigbt flute coolant through

MIN ID THREAD
/PITCH*		 "A" TOOL DIA. "B" LENGTH OF CUT “Q” LENGTH "S" SHANK DIA. OAL FLUTES ORDER # EDP #
UNCOATED AlTiN+ UNCOATED AlTiN+
INTERNAL THREADS ONLY
3/4-10 0.450 1.140 0.042 0.500 3.50 4 TMC450-10 TMC450-10A 102463 102493
5/8-11 0.450 1.127 0.039 0.500 3.50 4 TMC450-11 TMC450-11A 102466 102496
5/8-12 0.450 1.117 0.035 0.500 3.50 4 TMC450-12 TMC450-12A 102469 102499
9/16-16 0.450 1.087 0.026 0.500 3.50 4 TMC450-16 TMC450-16A 102472 102502
9/16-18 0.450 1.134 0.023 0.500 3.50 4 TMC450-18 TMC450-18A 102475 102505
9/16-20 0.450 1.120 0.021 0.500 3.50 4 TMC450-20 TMC450-20A 102478 102508
7/8-12 0.620 1.117 0.035 0.625 3.50 6 TMC620-12 TMC620-12A 102511 102520
7/8-14 0.620 1.100 0.030 0.625 3.50 6 TMC620-14 TMC620-14A 102514 102523
7/8-16 0.620 1.087 0.026 0.625 3.50 6 TMC620-16 TMC620-16A 102517 102526





all dimensions are in inches

Thread mills can cut any larger size internal thread of the same pitch



Back to Top of Page



UN Thread Mills
COOLANT THROUGH - CARBIDE TIPPED

 "AlTiN+ coating for higher cutting speed

Coolant to each flute

Cuts UNC, UNF, UNEF, and UNS threads Cuts UNJ threads (internal only)

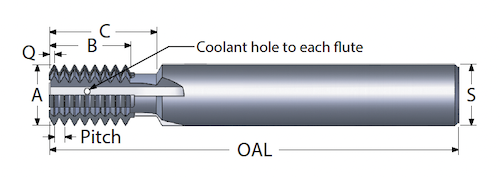

thread mill straigbt flute

MIN ID “A” “B” LENGTH OF CUT “C” TOOL REACH “Q” LENGTH “S” SHANK DIA. OAL FLUTES ORDER # EDP #
THREAD    TOOL
/ PITCH*     DIA.		 UNCOATED AlTiN+ UNCOATED AlTiN+
    INTERNAL OR EXTERNAL THREADS
1¼-7 0.740 1.130 1.370 0.065 0.750 6.00 4 TMC740-7 TMC740-7A 102541 102577
1-8 0.740 1.122 1.370 0.057 0.750 6.00 4 TMC740-8 TMC740-8A 102544 102580
1-12 0.740 1.076 1.370 0.038 0.750 6.00 4 TMC740-12 TMC740-12A 102529 102565
1-14 0.740 1.135 1.370 0.032 0.750 6.00 4 TMC740-14 TMC740-14A 102532 102568
1-16 0.740 1.119 1.370 0.028 0.750 6.00 4 TMC740-16 TMC740-16A 102535 102571
1-20 0.740 1.096 1.370 0.023 0.750 6.00 4 TMC740-20 TMC740-20A 102538 102574
1½-6 0.990 1.152 2.000 0.076 1.000 6.00 6 TMC990-6 TMC990-6A 102589 102613
1½-8 0.990 1.122 2.000 0.061 1.000 6.00 6 TMC990-8 TMC990-8A 102592 102616
1½-12 0.990 1.166 2.000 0.041 1.000 6.00 6 TMC990-12 TMC990-12A 102583 102607
1½-16 0.990 1.122 2.000 0.029 1.000 6.00 6 TMC990-16 TMC990-16A 102586 102610

all dimensions are in inches

Thread mills can cut any larger size internal thread of the same pitch

Back to Top of Page







Straight Flute UN   pdf file
