TITAN Refinery Wrench

refinery wrench

The TITAN REFINERY WRENCH is a combination pipe wrench/valve wheel wrench designed for multiple uses in the refining, petrochemical, and gas processing industries.

The valve wheel wrench has a special shaped opening which reduces the chance of slipping when working in overhead or crowded positions.

Steel wrenches are available with “Surgrip” style valve wheel wrench opening to further reduce slipping.



valve wheel opening surgrip opening
The valve wheel wrench has a special shaped opening which reduces the chance of slipping when working in overhead or crowded positions. Steel wrenches are available with “Surgrip” style valve wheel wrench opening to further reduce slipping.



TITAN Refinery Wrench

CATALOG NO. PIPE CAPACITY WHEEL WRENCH OPENING LENGTH (CLOSED) WEIGHT
STEEL (“Surgrip” style valve wheel wrench opening)
TIT.RW1SG 1/8" - 1" 3/4" 10" 1-5/8 lbs.
TIT.RW2SG 1/8" - 1-1/2" 1/2" 10" 2-1/4 lbs.
STEEL
TIT.RW1 1/8" - 1" 3/4" 10" 1-1/2 lbs.
TIT.RW2 1/8" - 1-1/2" 1/2" 10" 1-3/4 lbs.
ALUMINUM (For light-duty applications only)
TIT.RW1AL 1/8" - 1" 3/4" 10" 3/4 lb.
TIT.RW2AL 1/8" - 1-1/2" 1/2" 10" 1 lb.


TO BE USED AS A HAND TOOL ONLY. DO NOT STRIKE, USE A "CHEATER", OR EXTEND HANDLE IN ANY WAY. FOLLOW OSHA, NATIONAL SAFETY COUNCIL, HAND TOOLS INSTITUTE, ETC., STANDARDS, SAFE PRACTICES & PROCEDURES.
NOTE: SAFE PRACTICES & PROCEDURES CAN BE FOUND HERE.

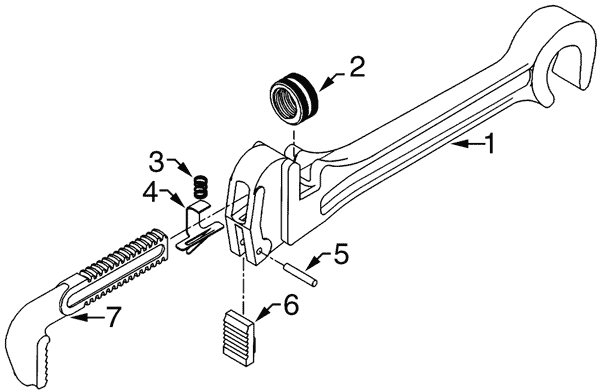

exploded view of refinery wrench
KEY NO. ITEM DESCRIPTION NO. REQ'D.
1 HANDLE 1
2 ADJUSTING NUT 1
3,4 SPRING SET 1
5,6 TOOTH INSERT & PIN 1
7 HOOK JAW 1



link to Titan index page







(December 2021) Oct 2020, March 2017, October 2011, October 2009, Sept 2002

The descriptions, illustrations, specifications, dimensions, and part numbers are subject to change without notice.
