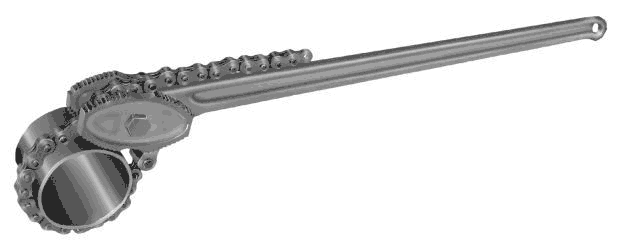

TITAN REVERSIBLE CHAIN TONGS



TITAN REVERSIBLE CHAIN TONGS allow the operator to turn the pipe in either direction without removing the tong or unhooking the chain.

The handles are drop-forged steel and have a heavy-duty I-beam design.

Jaws are forged from special high-quality steel and heat-treated to stand rugged service.

All sizes are equipped with heat-treated PETOL Special Chains.

Replacement parts are interchangeable with other standard brands of reversible chain tongs and are packaged and labeled for the customer's convenience in getting correct and genuine PETOL & TITAN parts.

CATALOG
NO.
PIPE
SIZE
GRIPPING
WIDTH
TONG
LENGTH

WEIGHT
CHAIN TENSILE
STRENGTH
TIT.C27-P 1/4" - 2-1/2" 2.19" 27" 11 lbs. 13,800 lbs.
TIT.C37-P 3/4" - 4" 2.69" 37" 19 lbs. 17,600 lbs.
TIT.C47-P 1" - 6" 3.00" 47" 27 lbs. 20,100 lbs.
TIT.C57-P 1-1/2" - 8" 3.38" 57" 40 lbs. 22,000 lbs.
TIT.C67-P 2" - 12" 3.69" 67" 59 lbs. 31,000 lbs.

TITAN REVERSIBLE CHAIN TONGS WITH EXTRA LONG CHAIN

CATALOG
NO.

O.D.

WEIGHT
TIT.C27-34-P 1/2" - 7-1/4" 11-1/4 lbs.
TIT.C27-44-P 1/2" - 9" 12-1/4 lbs.
TIT.C27-56-P 1/2" - 11-3/4" 13-1/4 lbs.
TIT.C27-66-P 1/2" - 14" 14-1/4 lbs.
TIT.C27-78-P 1/2" - 17-1/2" 15-3/8 lbs.
TIT.C37-36-P 1" - 7-1/4" 19-3/4 lbs.
TIT.C37-48-P 1" - 11" 22-1/4 lbs.
TIT.C37-60-P 1" - 15" 23-1/4 lbs.
TIT.C37-72-P 1" - 18" 25 lbs.
TIT.C37-84-P 1" - 22" 26-3/4 lbs.
TIT.C47-46-P 1-3/8" - 11-3/4" 27-3/4 lbs.
TIT.C47-60-P 1-3/8" - 15" 31-1/2 lbs.
TIT.C47-76-P 1-3/8" - 22" 35-1/4 lbs.
TIT.C47-90-P 1-3/8" - 27" 38 lbs.
TIT.C47-106-P 1-3/8" - 32-1/2" 40-3/4 lbs.
TIT.C57-54-P 1-15/16" - 15-1/2" 42-3/4 lbs.
TIT.C57-72-P 1-15/16" - 21-1/4" 47-1/2 lbs.
TIT.C67-54-P 2-3/8" - 19-1/2" 60 lbs.
TIT.C67-84-P 2-3/8" - 31-3/4" 72 lbs.

NOTE: TONGS EQUIPPED WITH EXTRA LONG CHAINS ARE NOT REVERSIBLE



TO BE USED AS A HAND TOOL ONLY. DO NOT STRIKE, USE A "CHEATER", OR EXTEND HANDLE IN ANY WAY. READ SAFE PRACTICES & PROCEDURES MANUAL PRIOR TO OPERATION. DO NOT EXCEED PUBLISHED RATINGS. DO NOT OPERATE WITHOUT MANUAL. FOR ADDITIONAL COPIES CALL: 254 / 675-8651. FOLLOW OSHA, NATIONAL SAFETY COUNCIL, HAND TOOLS INSTITUTE, ETC., STANDARDS, SAFE PRACTICES & PROCEDURES.

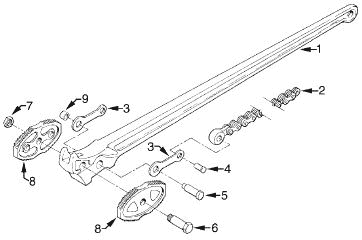

exploded view part list

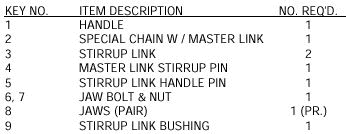

	parts list



link to Titan index page





November 2022, January 2022, October 2020, updated April 2017, November 2009 CSS, Sept 2002

The descriptions, illustrations, specifications, dimensions, and part numbers are subject to change without notice.
