Tangential Chasers for Landis Style Die Heads

chasers for Landis style die heads

Our Landis Style Tangent chasers are manufactured from premium grade M2 high-speed steel and hardened to exacting standards to provide excellent performance and cutting consistency.

How to order | Blank Sizes | Reference Info

Landis Tangent Style chasers

Landis style standard and non-stock chasers are available in a variety of sizes, pitches and throat angles.

The throat of 20º standard “long” throat chasers, normally furnished for use with Lanco heads, starts below the root and is used to trim away scale or nominally excess material on the O.D.

The throat of 20º standard “short” throat chasers starts at the root and is supplied for use with Landmatic® and Landex® heads, where the blank is usually prepared to the size.

Unless otherwise specified, all “bolt” chasers are supplied with a 22º lip-rake grind suitable for threading mild steel.

Chasers for threading pipe are furnished with a 22º straight rake grind – 30º and 45º throats are furnished only where the relief or thread run-out is restricted.





For proper order entry, you will need the following:

  • Number of sets required
  • Part Number *

If no part number is available, please also supply:

  • Size and Style of die head
  • Blank Size (width x length)
  • Material to be threaded
  • Pitch
  • Thread Form (UN, ISO METRIC, PIPE, British Whitworth, etc.)
  • Chamfer / Throat
  • RH or LH threads

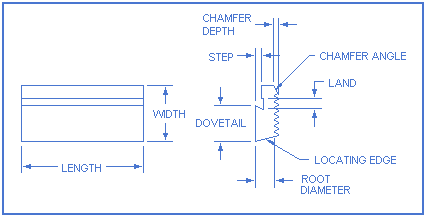

Blank Sizes

landis chaser blank info



1/2 x 1
5/8 x 1 1/8
3/4 x 1 5/8
15/16 x 2 1/8
1 x 4
1 3/64 x 3 or 4
1 1/16 x 4
1 7/64 x 4
1 1/4 x 2 3/4 or 4
1 1/2 x 4 or 5
1 7/8 x 5
2 1/4 x 5




chaser product and reference guide

Chasers for Landis Style Die Head
American National Forms, UNC, UNF, UNS (Inch)
ISO Metric
American Standard Pipe Threads
British Whitworth Threads (available as special)
Chasers for Landis Style Tap Head
American Standard Pipe Threads
British Whitworth Threads (available as special)

November 2022, June 2022, October 2020, updated Sept 2018, June 2014 CSS, February 2002

The descriptions, illustrations, specifications, dimensions, and part numbers are subject to change without notice.
