LATHEGUARD

 Prevent Accidents With
LATHEGUARD
Made in U.S.A.

Latheguard

Rib Reinforced

Robust Construction

Light in Weight

Swings Away Easily



Latheguard

LATHEGUARD™
Clear LEXAN®, Semi-Circular Wrap-a-round Guards

  • Heavy Duty Cast Mounting bracket supplied
  • Heavy Duty Chrome-plated extension tube and hardware.
    Ready to mount; all you do is affix mounting bracket with two screws.
  • Back of shield is reinforced with plated wire form housing.
  • Locks in swing away or functional positions.
  • Accepts 3 or 4-Jaw Chucks.
LATHEGUARD SHIELD COMPLETE WITH HARDWARE & MOUNTING BRACKET NO FLEX.FLEX.13070*
*ALSO AVAILABLE WITH FLEXBAR ELECTRICAL INTERLOCKING MOUNTING BRACKETS

Model
No.
Suggested
Lathe size
Center
Height (A)
Shield Height
Use With
Chucks
Shield
Width (F)
Shield
Length (B)
Tube
Length (E)
FLEX.12999 Very Small Lathes 3.9" Up to 6" Dia. 6¼" 7.8" 10"
FLEX.13060 6 to 12 6" Up to 8" Dia. 6¼" 11.8" 10"
FLEX.13061 12 to 16 8" Up to 12" Dia. 8" 15.8" 11½"
FLEX.13062 16 to 20 10" Up to 16" Dia. 8" 19.70" 13"
FLEX.13064 20 to 24 13" Up to 20" Dia. 8" 23.6" 13"
FLEX.13059 Extra Long Tube (E) for lathes where chuck sticks out a long way from headstock. 16"




Heavy Duty Thumbscrew Knobs

REPLACEMENT SHIELDS AVAILABLE. PHONE OR FAX.
*ALL LATHEGUARDS SUPPLIED WITH MOUNTING BRACKET NO. FLEX.13070
Order from below if you Lathe needs either #FLEX.13068 or #FLEX.13069 Bracket or No. FLEX.13071 Double Bracket.



Model
No.

Description
(Mounting Bracket Only)
FLEX.13068 For Mounting to top or back of headstock.
FLEX.13069 Extension or telescoping type for top or back mounting.
FLEX.13070 If you want an extra mounting bracket.
FLEX.13071 Double Bracket; this enables you to mount the next larger shield when changing from a
3 Jaw Chuck to a 4 Jaw Chuck.

*Trademark of GENERAL ELECTRIC CO.

Information and Specifications
HINTS FOR SELECTING THE CORRECT LATHEGUARD!

(1) The Chuck Diameter being used on your Lathe makes for a good formula.
(2) Utilize Dimension "A" and other dimensions given in chart shown below.
(3) On Lathes with center heights of 7 inches or more there is a significant variation in the diameter of a 3 Jaw as against a 4-Jaw Chuck. It may be necessary to install the next larger Latheguard to accommodate for the 4-Jaw Chuck. Keeping a double bracket (No. FLEX.13071) on the Lathe makes it possible to switch your latheguard from small to larger size and vice versa, in one minute.

NEITHER RAZOR SHARP CHIPS NOR BROKEN TOOLS BITS
WILL PENETRATE THE LEXAN SHIELD

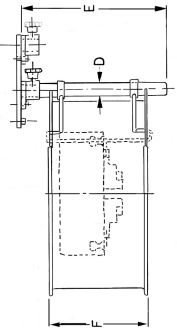

Dimensions

Dimensions



Model
No.
Dimensions In Inches
A B C D E F

FLEX.12999
FLEX.13060
FLEX.13061
FLEX.13062
FLEX.13064
3.9
6.0
8.0
10.0
13.0
7.8
11.8
15.8
19.7
23.6
5.0
7.0
9.0
11.0
12.9
1.0
1.0
1.0
1.0
1.0
10
10
11.5
13
13
6.25
6.25
8.0
8.0
8.0



Model
No.
Replacement shields (only) for LATHEGUARD
Shield
Width (F)
Shield
Length (B)
Shield
Height (A)
Replacement
for Latheguard
Model No.

FLEX.13072
FLEX.13065
FLEX.13066
FLEX.13063
FLEX.13067
6¼"
6¼"
8"
8"
8"
7.8"
12"
16"
19.70"
24"
3.9"
6"
8"
10.25"
12"
FLEX.12999
FLEX.13060
FLEX.13061
FLEX.13062
FLEX.13064

link to  Machine Safety Guards Menu
