IMP.S32633 | REPLACEMENT CUTTING WHEEL | Replacement cutting wheel. Cutting wheel can be used in IMP® part number TC-1050 and JUNIOR TUBE CUTTER, part number 227-FA. | |
IMP.S74761 | ADJUST-O-MATIC TUBE CUTTERS | Replacement cutting wheel | |
IMP. S75015 | HI-DUTY TUBE CUTTERS | Replacement cutting wheel for soft copper aluminum brass and steel tubing (supplied with TC-1000, 312-FC and TC-1020). | |
IMP.S75046 | HI-DUTY TUBE CUTTERS | Replacement cutting wheel for stainless steel, monel and hard temper copper tubing. | |
IMP.S76637 | HI-DUTY TUBE CUTTERS | Replacement constrictor roller wheel. | |
IMP.S77615 | PRODUCTION PLASTIC TUBE AND HOSE SHEAR | Replacement cutting blade. | |
IMP.S8115601 | SNIMP PLASTIC TUBE AND HOSE SHEAR | Replacement blade.For 1/16" to 1/2" (1 to 13 mm) O.D. hose* or tubing. |

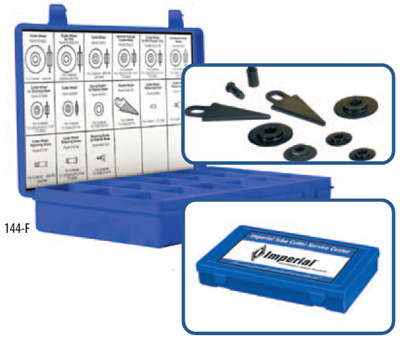

IMP.144-F IMPERIAL TUBE CUTTER SERVICE CENTER
- 15 most common replacement parts stocked in one handy container.

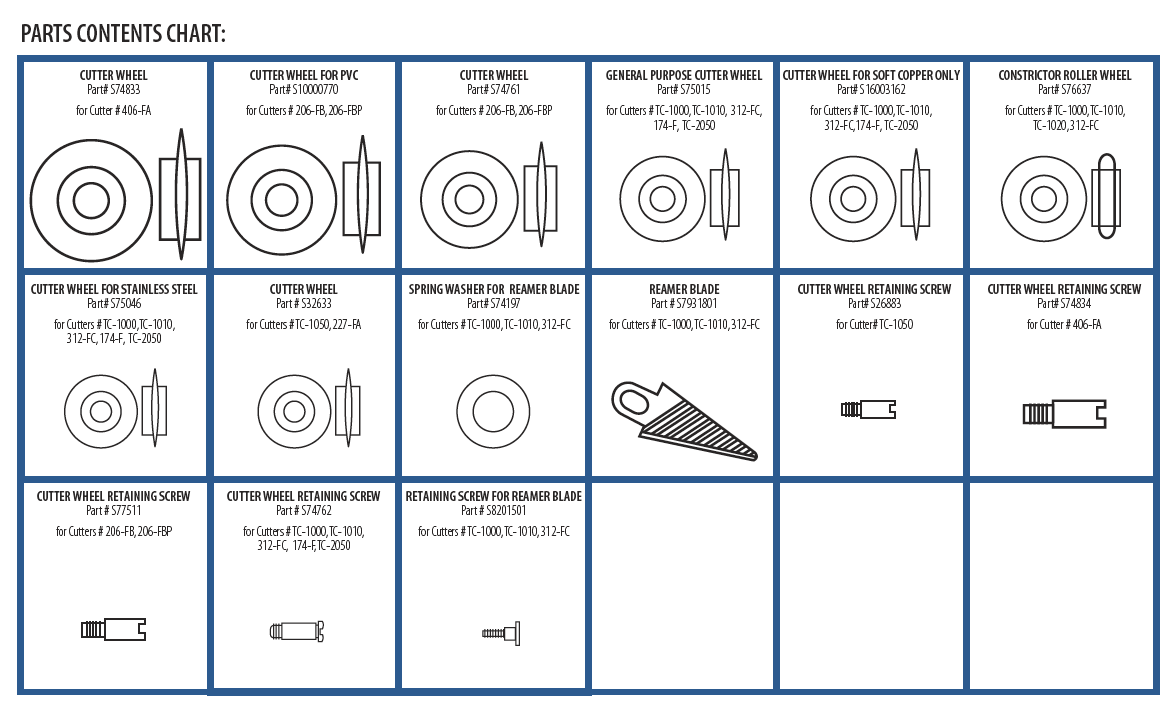

- Includes a visual replacement chart for quick and easy identification.
IMP.144-F SERVICE CENTER INCLUDES:
Part Number | Quantity | Description | Cutter |
---|---|---|---|
IMP.S75015 |
10 |
General Purpose Cutter Wheel |
TC-1000, TC-1010, 312-FC, 174-F, TC-2050, TC-3050 |
IMP.S75046 |
5 |
Cutter Wheel for Stainless Steel |
TC-1000, TC-1010, 312-FC, 174-F, TC-2050, TC-3050 |
IMP.S32633 |
10 |
Cutter Wheel |
TC-1050, 227-FA |
IMP.S74761 |
5 |
Cutter Wheel |
206-FB, 206-FBP |
IMP.S74762 |
5 |
Cutter Wheel Retaining Screw |
TC-1000, TC-1010, 312-FC, 174-F, TC-2050, TC-3050 |
IMP.S74833 |
3 |
Cutter Wheel |
406-FA |
IMP.S26883 |
3 |
Cutter Wheel Retaining Screw |
TC-1050 |
IMP.S77511 |
3 |
Cutter Wheel Retaining Screw |
206-FB, 206-FBP |
IMP.S74834 |
3 |
Cutter Wheel Retaining Screw |
406-FA |
IMP.S76637 |
3 |
Constrictor Roller Wheel |
TC-1000, TC-1010, TC-1020, 312-FC |
IMP.S16003162 |
5 |
Cutter Wheel for Soft Copper Only |
TC-1000, TC-1010, 312-FC, 174-F, TC-2050, TC-3050 |
IMP.S10000770 |
3 |
Cutter Wheel for PVC |
206-FB, 206-FBP |
IMP.S7931801 |
3 |
Reamer Blade |
TC-1000, TC-1010, 312-FC |
IMP.S8201501 |
3 |
Retaining Screw for Reamer Blade |
TC-1000, TC-1010, 312-FC |
IMP.S74197 |
3 |
Spring Washer for Reamer Blade |
TC-1000, TC-1010, 312-FC |
IMP.144-FB |
1 |
Container only |
