Order on Line  add to cart

Imperial Series 270-F GEAR TYPE TUBE BENDER

270F tube bender

Spur-gear type with 10-to-1 ratio for easy bending of all tempered tubing

IMP.270-F GEAR TYPE TUBE BENDER
For 3/8" to 1-1/8" O.D. tubing.


For all bending work. Spur-gear type with 10-to-1 ratio for easy bending of all tempered tubing. Floating shoe aligns tube perfectly on calibrated forming wheel. Pull-pin on
wheel speeds repositioning for bends over 90°. Portable. Can be hand held, clamped in vise or bolted to bench. Adapts to pipe vise with handle 271-F.



Download the Tubing Tool Selector
Reference Guide 01 (PDF)
270 f tube bender

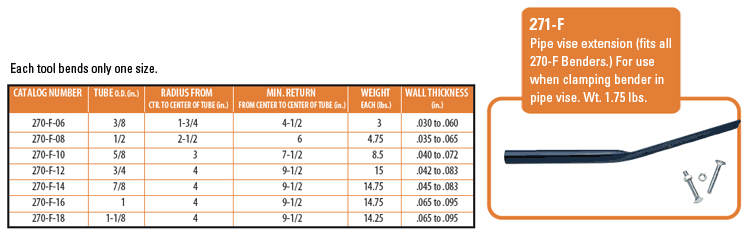

Part Number Tube O.D ( inch ) Radius from
Center to Center of Tube ( inch)
Min. Return
from center to center of tube ( inch)
weight
( lbs)
wall thickness
( inch)

 IMP.270F06  270-F-06

 discontinued



IMP.270F08  270-F-08

 1/2"  2-1/2"  6"  4.75  .035" to .065"

IMP270F10  270-F-10

 discontinued

IMP.270F12  270-F-12

 3/4"  4"  9-1/2"  15  .042" to .083"

IMP.270F14  270-F-14

 7/8"  4"   9-1/2"  14.75  .045" to .083"

IMP.270F16  270-F-16

 discontinued

IMP.270F18  270-F-18

 1-1/8"  4"   9-1/2" 14.25  .065" to .095"



270 data table

270-F06 is discontinued

270-F10 is discontinued

270-F16 is discontinued

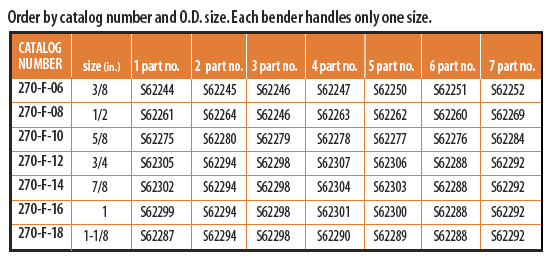

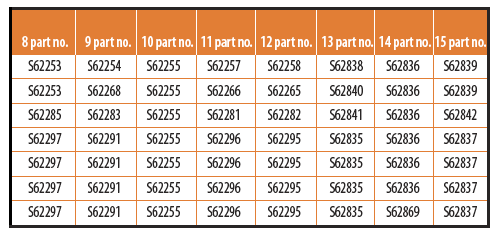

270 replacement parts

270 table of parts

270 table of parets



link to Imperial Tools index page

February 2022, February 2020 , updated November 2009 CSS, July 2009,October 2005

The descriptions, illustrations, specifications, dimensions, and part numbers are subject to change without notice.
