HI-DUTY TUBE CUTTERS



HI-DUTY® TUBE CUTTERS
For 1/8" to 1-1/8" and 1/4" to 1-5/8" O.D. tubing.

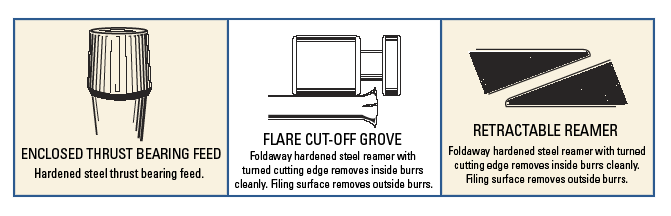

• Enclosed hardened steel, thrust bearing feed mechanism
  for smoothest cutting action and trouble-free operation.
• Imperial’s unique design eliminates spiraling for clean right
  angle cuts. Our high precision machining and construction
  method permits one-piece screw type axle for easy access
  to cutting wheel – no clip to lose or replace.
• Rugged aluminum alloy body designed for handling ease.
  Body is hand buffed and nickel chrome plated to a high
  luster finish.
• Foldaway hardened steel reamer with turned cutting edge
  removes inside burrs cleanly. Filing surface removes
  outside burrs.
• Rollers feature flare cut-off groove to reduce tube loss
  when damaged flare is removed.
• Imperial cutter wheels are made of the highest quality
  wear & abrasion resistant chromium steel and precision
  machined to exacting specifications for accurate cutting

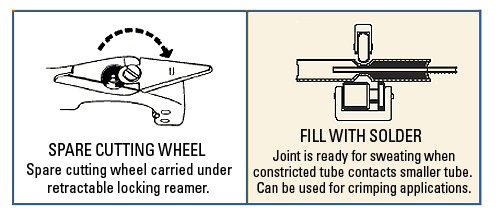

  and long life. Each tool is supplied with a spare cutter wheel.
• All Imperial tube cutters are 100% factory tested to ensure
  accurate spiral free cutting.

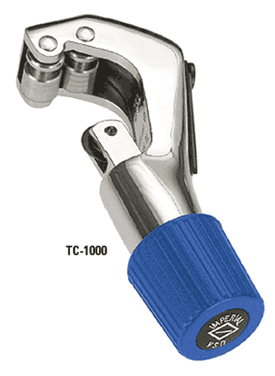

IMP.TC-1000 For 1/8" to 1-1/8" (4 mm to 28 mm) O.D. tubing.
Includes (2) S75015 general-purpose cutter wheels.
Length 5". Wt. 6.5 oz.

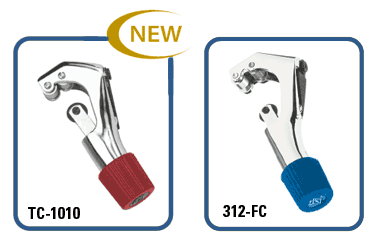

IMP.TC-1010 For 1/8" to 1-1/8" (4 mm to 28 mm) O.D. tubing.
Includes (2) S75046 cutter wheels for continuous cutting
of stainless steel, monel and other hard temper tubing.
Length 5". Wt. 6.5 oz.

IMP.TC-1020
Combination tube constrictor & tube cutter. For
1/8" to 1-1/8" (4 mm to 28 mm) O.D. tubing. Includes S76637
constrictor wheel and S75015 general-purpose cutter wheel.
Length 5-1/2". Wt. 7.0 oz.

IMP.312-FC For 1/4" to 1-5/8" (7 mm to 41 mm) O.D. tubing.
Includes (2) S75015 general-purpose cutter wheels.
Length 5-1/2". Wt. 7.0 oz.

Conforms to Federal Specification GGG-C-771d,
Type II, Class I.



Download the Tubing Tool Selector
Reference Guide 01 (PDF)



IMP.S75015 General-purpose cutter wheel.

IMP.S75046 Wheel for continuous cutting of stainless steel,
monel and other hard temper tubing.

IMP.S16003162
Replacement cutting wheel for soft copper & aluminum tubing is extra sharp to minimize burr buildup.

IMP.S76637
Constrictor wheel for producing sweat joints.







JUNIOR TUBE CUTTER
For 1/8" to 3/4" (4 mm to 19 mm) O.D. tubing.

IMP.227-FA
Includes S32633 general-purpose cutter wheel.
Swing radius 2". Length 3-1/2". Wt. 5.0 oz.
