Aluminum Magnetic Threaded Plugs
With NBR Seal

Aluminum
Magnetic Threaded Plugs
With NBR Seal

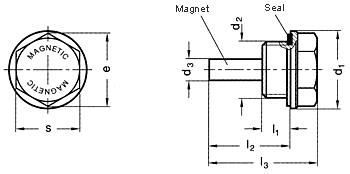

GN 738



Specification
Information
Body: Aluminum, matte shot-blasted finish
Symbols laser engraved
Seal: NBR synthetic rubber
GN 738 magnetic plugs attract iron particles which might be suspended in the liquid.
The magnetic pin is of a length which makes it impossible to demagnetize itself.
To avoid breakage or de-magnetizing, round rod magnets are fitted with a plastic protection tube. This tube has to be removed prior to installing the plug.
The seal is retained in a radial undercut in the mating face, which prevents it from dropping out and from extruding when the plug is tightened. For this reason the seal can be of a softer material which offers better sealing.
NBR seal: maximum heat resistance: 120°C (250°F).
Metric Pipe Thread Table
Dimensions in: millimeters
(inches)
Part Number d1 d2
Thread
d3 e ˜ l1 l2 l3 s
MAG.PLUGM16X1.5 22
(.87)
M16 x 1.5  6
(.24)
20.8
(.82)
8
(.31)
23
(.91)
30.5
(1.20)
18
(.71)
MAG.PLUGM20X1.5 26
(1.02)
M20 x 1.5 6
(.24)
24.3
(.96)
8.5
(.33)
23.5
(.93)
31
(1.22)
21
(.83)
MAG.PLUGM26X1.6 32
(1.26)
M26 x 1.5 6
(.24)
31.3
(1.23)
9
(.35)
24
(.94)
32
(1.26)
27
(1.06)
BSPP Parallel Thread Table
Dimensions in: millimeters
(inches)
Part Number d1 d2
Pipe Thread
d3 e ˜ l1 l2 l3 s
MAG.PLUG3/8BSP 22
(.87)
G 3/8"  6
(.24)
20.8
(.82)
8
(.31)
23
(.91)
30.5
(1.20)
18
(.71)
MAG.PLUG1/2BSP 26
(1.02)
G 1/2"  6
(.24)
24.3
(.96)
8.5
(.33)
23.5
(.93)
31
(1.22)
21
(.83)
MAG.PLUG3/4BSP 32
(1.26)
G 3/4"  6
(.24)
31.3
(1.23)
9
(.35)
24
(.94)
32
(1.26)
27
(1.06)
