Ozat Impact Sockets #5 Spline drive

spline drive impact socket ozat

Six Point Impact Sockets    | Bud Wheel Impact Sockets





spline drive socket spline drive impact socket ozat
PART NUMBER NOMINAL OPENINGS DIAMETER CLEARANCE LENGTH OPENING DEPTH
R L MM A/F WHIT D1 D2 R L R L T
OZA.9512M19 OZA.9512M19L 19 3/4"   48 60 26 116 70 160 9.5
OZA.95M20 OZA.95M20L 20     48 60 26 116 70 160 10
OZA.9513 OZA.9513L   13/16"   48 60 26 116 70 160 11
OZA.95M21W07 OZA.95M21W07L 21   7/16" 48 60 26 116 70 160 10
OZA.95M22 OZA.95M22L 22     48 60 26 116 70 160 10
OZA.9514 OZA.9514L   7/8"   48 60 26 116 70 160 13
OZA.95M23 OZA.95M23L 23     48 60 26 116 70 160 12
OZA.95W08 OZA.95W08L     1/2" 48 60 26 116 70 160 13
OZA.9515 OZA.9515L   15/16"   48 60 26 116 70 160 13
OZA.95M24 OZA.95M24L 24     49 60 26 116 70 160 12
OZA.95M25 OZA.95M25L 25     49 60 26 116 70 160 13
OZA.9516 OZA.9516L   1"   49 60 26 116 70 160 13
OZA.95W09 OZA.95W09L     9/16"  49 60 26 116 70 160 13
OZA.95M26 OZA.95M26L 26     51 60 26 116 70 160 13
OZA.9517M27 OZA.9517M27L 27 1-1/16"   51 60 26 116 70 160 13
OZA.95M28W10 OZA.95M28W10L 28   5/8" 51 60 26 116 70 160 14
OZA.9518 OZA.9518L   1-1/8"   51 60 26 116 70 160 16.5
OZA.95M29 OZA.95M29L 29     54 60 26 116 70 160 14
OZA.9519M30 OZA.9519M30L 30 1-3/16"   54 60 26 116 70 160 16.5
OZA.95W11 OZA.95W11L     11/16" 60 60 31 116 75 160 17
OZA.95M31 OZA.95M31L 31     60 60 31 116 75 160 16.5
OZA.9520 OZA.9520L   1-1/4"   60 60 31 116 75 160 17
OZA.95M32 OZA.95M32L 32     60 60 31 116 75 160 16.5
OZA.95M33W12 OZA.95M33W12L 33   3/4" 60 60 31 116 75 160 17
OZA.9521 OZA.9521L   1-5/16"   60 60 33 116 77 160 19
OZA.95M34 OZA.95M34L 34     60 60 33 116 77 160 17
OZA.9522M35 OZA.9522M35L 35 1-3/8"   60 60 33 116 77 160 19
OZA.95W13 OZA.95W13L     13/16" 63 60 33 116 77 160 19
OZA.95M36 OZA.95M36L 36     63 60 33 116 77 160 19
OZA.9523 OZA.9523L   1-7/16"   63 60 33 116 77 160 19
OZA.95M37 OZA.95M37L 37     63 60 33 116 77 160 19
OZA.95W14 OZA.95W14L     7/8" 63 60 33 116 80 160 22
OZA.9524M38 OZA.9524M38L 38 1-1/2"   63 60 36 116 80 160 22
OZA.95M39 OZA.95M39L 39     67 60 36 116 80 160 22
OZA.9525 OZA.9525L   1-9/16"   67 60 36 116 80 160 22
OZA.95M40W15 OZA.95M40W15L 40   15/16" 67 60 36 116 80 160 22
OZA.9526M41 OZA.9526M41L 41 1-5/8"   67 60 36 116 80 160 22
OZA.95M42 OZA.95M42L 42     67 60 36 116 80 160 21.5
OZA.95W16 OZA.95W16L     1" 67 60 36 116 80 160 21.5
OZA.9527M43 OZA.9527M43L 43 1-11/16"   67 60 40 116 84 160 25
OZA.95M44 OZA.95M44L 44     73 60 40 116 84 160 21.5
OZA.9528 OZA.9528L   1-3/4"   73 60 40 116 84 160 25.5
OZA.95M45W17 OZA.95M45W17L 45   1-1/16" 73 60 40 116 84 160 21.5
OZA.9529M46 OZA.9529M46L 46 1-13/16"   73 60 40 116 84 160 25.5
OZA.95M47 OZA.95M47L 47     73 60 40 116 84 160 23.5
OZA.95W18 OZA.95W18L     1-1/8" 73 60 44 116 88 160 27
OZA.9530 OZA.9530L   1-7/8"   73 60 44 116 88 160 27
OZA.95M48 OZA.95M48L 48     73 60 44 116 88 160 23.5
OZA.9531M49 OZA.9531M49L 49 1-15/16"   73 60 44 116 88 160 27
OZA.95M50 OZA.95M50L 50     82 60 44 116 88 160 23.5
OZA.9532M51 OZA.9532M51L 51 2"   82 60 44 116 88 160 27

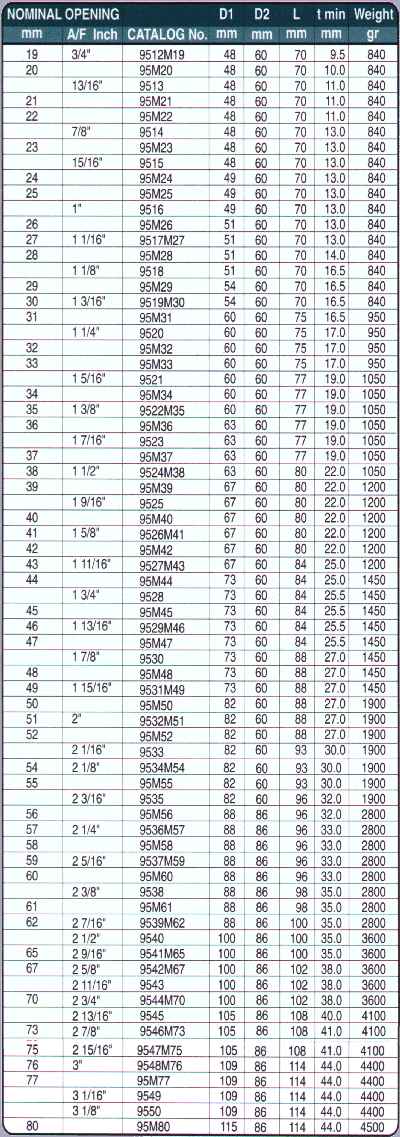

 weights for

regular length

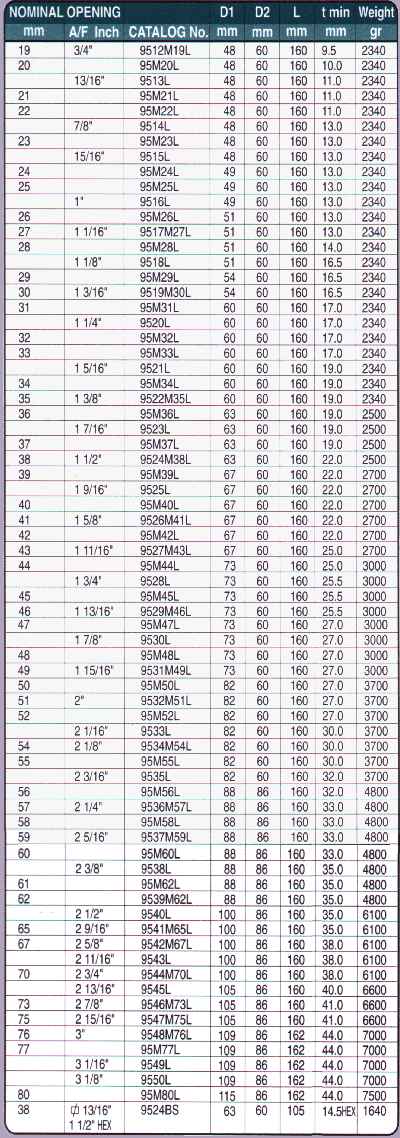

 weights for

long length









Six Point Impact Sockets
spline drive impact socket spine drive ozat
PART NUMBER NOMINAL OPENINGS DIAMETER CLEARANCE LENGTH OPENING DEPTH
R L MM A/F WHIT D1 D2 R L R L T
OZA.95M25W20 OZA.95M52W20L 52   1-1/4" 82 60 49 116 88 160 27
OZA.9533 OZA.9533L   2-1/16"   82 60 49 116 93 160 30
OZA.9534M54 OZA.9534M54L 54 2-1/8"   82 60 49 116 93 160 30
OZA.95M55 OZA.95M55L 55     82 60 49 116 93 160 27
OZA.9535 OZA.9535L   2-3/16"   82 60 52 116 96 160 32
OZA.95M56W22 OZA.95M56W22L 56   1-3/8" 88 86 52 116 96 160 28
OZA.9536M57 OZA.9536M57L 57 2-1/4"   88 86 52 116 96 160 33
OZA.95M58 OZA.95M58L 58     88 86 52 116 96 160 28
OZA.9537M59 OZA.9537M59L 59 2-5/16"   88 86 52 116 96 160 33
OZA.95M60 OZA.95M60L 60     88 86 52 116 96 160 28
OZA.9538 OZA.9538L   2-3/8"   88 86 54 116 98 160 35
OZA.95M61W24 OZA.95M61W24L 61   1-1/2" 88 86 54 116 98 160 28
OZA.9539M62 OZA.9539M62L 62 2-7/16"   88 86 54 116 100 160 35
OZA.9540 OZA.9540L   2-1/2"   100 86 54 116 100 160 35
OZA.9541M65 OZA.9541M65L 65 2-9/16"   100 86 54 116 100 160 35
OZA.95W26 OZA.95W26L     1-5/8" 100 86 58 116 100 160 35
OZA.9542M67 OZA.9542M67L 67 2-5/8"   100 86 58 116 102 160 38
OZA.9543 OZA.9543L   2-11/16"   100 86 58 116 102 160 38
OZA.9544M70 OZA.9544M70L 70 2-3/4"   100 86 58 116 102 160 38
OZA.95W28 OZA.95W28L     1-3/4" 105 86 58 116 108 160 39
OZA.9545 OZA.9545L   2-13/16"   105 86 64 116 108 160 40
OZA.9546M73 OZA.9546M73L 73 2-7/8"   105 86 64 116 108 160 41
OZA.9547M75 OZA.9547M75L 75 2-15/16"   105 86 64 116 108 160 41
OZA.9548M76 OZA.9548M76L 76 3"   109 86 70 118 114 162 44
OZA.95M77W30 OZA.95M77W30L 77   1-7/8" 109 86 70 118 114 162 44
OZA.9549 OZA.9549L   3-1/16"   109 86 70 118 114 162 44
OZA.9550 OZA.9550L   3-1/8"   109 86 70 118 114 162 44
OZA.95M80W32 OZA.95M80W32L 80   2" 115 86 70 118 114 162 37

 weights for

regular length

 weights for

long length


Bud Wheel Impact Sockets
PART NUMBER NOMINAL OPENINGS  DIAMETERS LENGTH OPENING DEPTH
R L D1 D2 R L T
OZA.9513B   13/16" 51 60 70   12
  OZA.9524BS 3/16" X 1-1/2" HEX 63 60   105 15
