Helical Brown & Sharpe Taper, Hand Reamers

List R1400BS, 1/2" taper per foot

High Speed Steel with Squared Shank, Aircraft Taper Reamers

1/2" taper per foot

Part Number

Size

S. E. Diameter

L.E. Diameter

Flute Length

No. of Flutes

Shank Dia.

OAL

R1400BS0

0

.160

.275

2 3/4

3

1/4

4 5/8

R1400BS1

1

.1974

.3176

2 7/8

4

9/32

4 3/4

R1400BS2

2

.2474

.3781

3 1/8

4

11/32

5 1/8

R1400BS3

3

.3099

.4510

3 3/8

4

13/32

5 1/2

R1400BS4

4

.3474

.5017

3 11/16

6

7/16

5 7/8

R1400BS5

5

.4474

.6145

4

6

9/16

6 3/8

R1400BS6

6

.4974

.6808

4 3/8

6

5/8

6 7/8

R1400BS7

7

.5974

.8011

4 7/8

6

3/4

7 1/2

R1400BS8

8

.7474

.9770

5 1/2

8

13/16

8 1/8

R1400BS9

9

.8974

1.1530

6 1/8

8

1

8 7/8

R1400BS10

10

1.0420

1.3376

6 7/8

8

1 1/8

9 3/4

R1400BS11

11

1.2474

1.5657

7 5/8

8

1 3/8

10 5/8

R1400BS12

12

1.4974

1.8409

8 1/4

8

1 1/4

11 1/2

Also furnished as Specials with special helix angle, extra length, end cutting or with chip breakers. Return to Newman Tools for resharpening.

Use Browm & Sharpe taper pin reamers for AN386 taper pins.

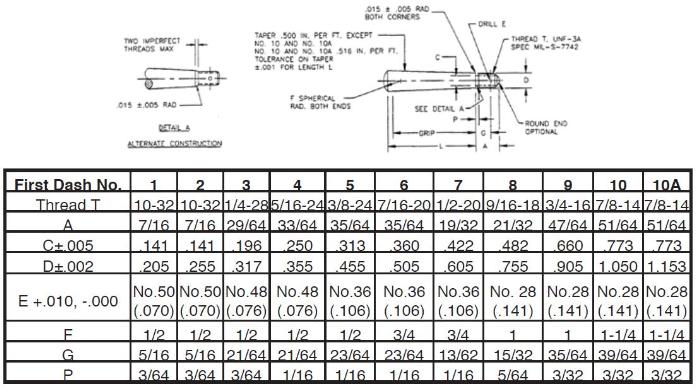

When using AN386 numbers:

The first dash number is the Brown & Sharpe taper pin reamer number and the second dash number is the grip length in eighths of an inch. For undrilled threaded shank add the letter "A" after second dash number.

TIP: To select the correct reamer for your application, look at the first dash number of the taper pin you are trying to install, and select the same reamer as that number. For example, if you have an AN386-1-8 pin to install, then you would use a #1 reamer.





link to Reamer index page
