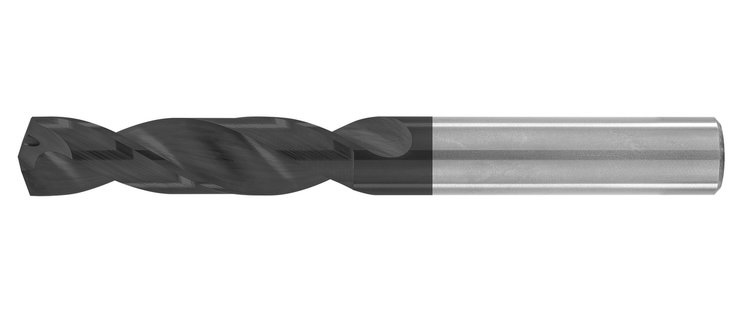

DFX Drills for Port Cutters

DFX drills for SAEJ1926 and AS5202 ports.

The drills are designed specifically to prepare holes for those ports, sizes -2 through -8.

  • For use with X-Series port tool without a pilot diameter.

  • Prepares hole for port tool by cutting minor thread diameter to size

  • Coolant through for superior chip evacuation

  • 140° self-centering point

  • AlTiN+ coating extends tool life and thermal stability






DFX DRILLS FOR SAEJ1926 PORT SIZES

SOLID CARBIDE, 140 DEGREE POINT, SCREW MACHINE LENGTH (3xD)

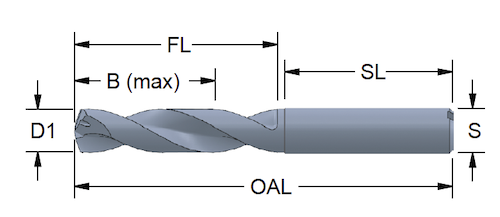

SAE SIZE “S” SHANK DIA. OAL “D1” DRILL DIA.
± .0005 inch

“FL”

FLUTE LENGTH inch

“B” MAX

DEPTH inch

“SL” SHANK

LENGTH inch

ORDER # EDP#
AlTiN+ AlTiN+
2 8mm 79mm 0.272 1.34 0.93 1.42 DFX3-272A 407000
3 10mm 89mm 0.335 1.85 1.35 1.57 DFX3-335A 407002
4 10mm 89mm 0.389 1.85 1.27 1.57 DFX3-389A 407004
5 12mm 102mm 0.452 2.17 1.49 1.77 DFX3-452A 407006
6 14mm 107mm 0.509 2.36 1.60 1.77 DFX3-509A 407008
8 18mm 123mm 0.689 2.87 1.84 1.89 DFX3-689A 407010





  The DFX Drill is part of SAE J1926 Port Kit












DFX DRILLS FOR AS5202 PORT SIZES

SOLID CARBIDE, 140 DEGREE POINT, SCREW MACHINE LENGTH (3xD)

AS5202 SIZE “S” SHANK DIA. OAL “D1” DRILL DIA.
± .0005 inch

“FL” FLUTE

LENGTH inch

“B” MAX

DEPTH inch

“SL” SHANK

LENGTH inch

ORDER # EDP#
AlTiN+ AlTiN+
2 8mm 79mm 0.276 1.34 0.92 1.42 DFX3-276A 407012
3 10mm 89mm 0.338 1.85 1.34 1.57 DFX3-338A 407014
4 10mm 89mm 0.393 1.85 1.26 1.57 DFX3-393A 407016
5 12mm 102mm 0.455 2.17 1.48 1.77 DFX3-455A 407018
6 14mm 107mm 0.513 2.36 1.59 1.77 DFX3-513A 407020
8 18mm 123mm 0.693 2.87 1.83 1.89 DFX3-693A 407022



The DFX Step Drill is part of AS5202 Port Kit
