AS5202 Port Contour Cutter Kits

AS5202kit

All-in-one kits includes a high-performance drill, a port tool for precise hole finishing, and a thread mill.
All tools are AlTiN+ coated





There are two kits available for completing an AS5202 port.

RD AS5202 kits includes a coolant through Roughing Step Drill, a Helical Thread Mill, and a Reamer style port tool.

DFX AS5202 kits have a coolant through DFX Drill that cuts the minor diameter, a Helical Thread Mill, and an X-Series port tool without a pilot diameter.




AS5202 RD PORT KIT

Order on Line  add to cart


KIT WITH ROUGHING STEP DRILL, SAE PORT TOOL REAMER PILOT, AND THREAD MILL

All tools are AlTiN+ coated.

AS5202 RD port kit

1. Roughing Step Drill
2. AS5202 Port Tool Reamer
3. 15° Helical Thread Mill

Port Size  Drill  Port Tool  Thread Mill  Kit Order Number  Kit EDP Number
AS5202-2  RD-AS5202-02A  AS5202-02RA  TMI234-24HA  AS5202KIT02RA  410030
AS5202-3  RD-AS5202-03A  AS5202-03RA  TMI285-24HA  AS5202KIT03RA  410032
AS5202-4  RD-AS5202-04A  AS5202-04RA  TMI335-20HA  AS5202KIT04RA  410034
AS5202-5  RD-AS5202-05A  AS5202-05RA  TMI370-20HA  AS5202KIT05RA  410036
AS5202-6  RD-AS5202-06A  AS5202-06RA  TMI370-18HA  AS5202KIT06RA  410038
AS5202-8  RD-AS5202-08A  AS5202-08RA  TMI495-16HA  AS5202KIT08RA  410040








AS5202 DFX PORT KIT

Order on Line  add to cart

KIT WITH DFX DRILL, SAE COOLANT THROUGH PORT TOOL WITHOUT PILOT,  AND THREAD MILL

This all-in-one kit includes a high-performance drill, a port tool for precise hole finishing, and a thread mill.

All tools are AlTiN+ coated.

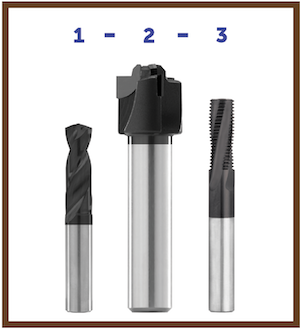

as5202 DFX port kit

1. DFX Drill
2. AS5202 X-Series Port Tool
3. 15° Helical Thread Mill

Port Size  Drill  Port Tool  Thread Mill  Kit Order Number  Kit EDP Number
AS5202-2  DFX3-276A  AS5202-02XA  TMI234-24HA  AS5202KIT02XA  410042
AS5202-3  DFX3-338A  AS5202-03XA  TMI285-24HA  AS5202KIT03XA  410044
AS5202-4  DFX3-393A  AS5202-04XA  TMI335-20HA  AS5202KIT04XA  410046
AS5202-5  DFX3-455A  AS5202-05XA  TMI370-20HA  AS5202KIT05XA  410048
AS5202-6  DFX3-513A  AS5202-06XA  TMI370-18HA  AS5202KIT06XA  410050
AS5202-8  DFX3-693A  AS5202-08XA  TMI495-16HA  AS5202KIT08XA  410052









Trademarks are the properties of their respective owner(s).

October 2024

The descriptions, illustrations, specifications, dimensions, and part numbers are subject to change without notice.
