"V-Wac" Weld Gauge

v-wac gage

WG-5 ( inch) | WG-5M ( metric

"V-Wac" Weld Gauge

v-wac gage
v-wac gage

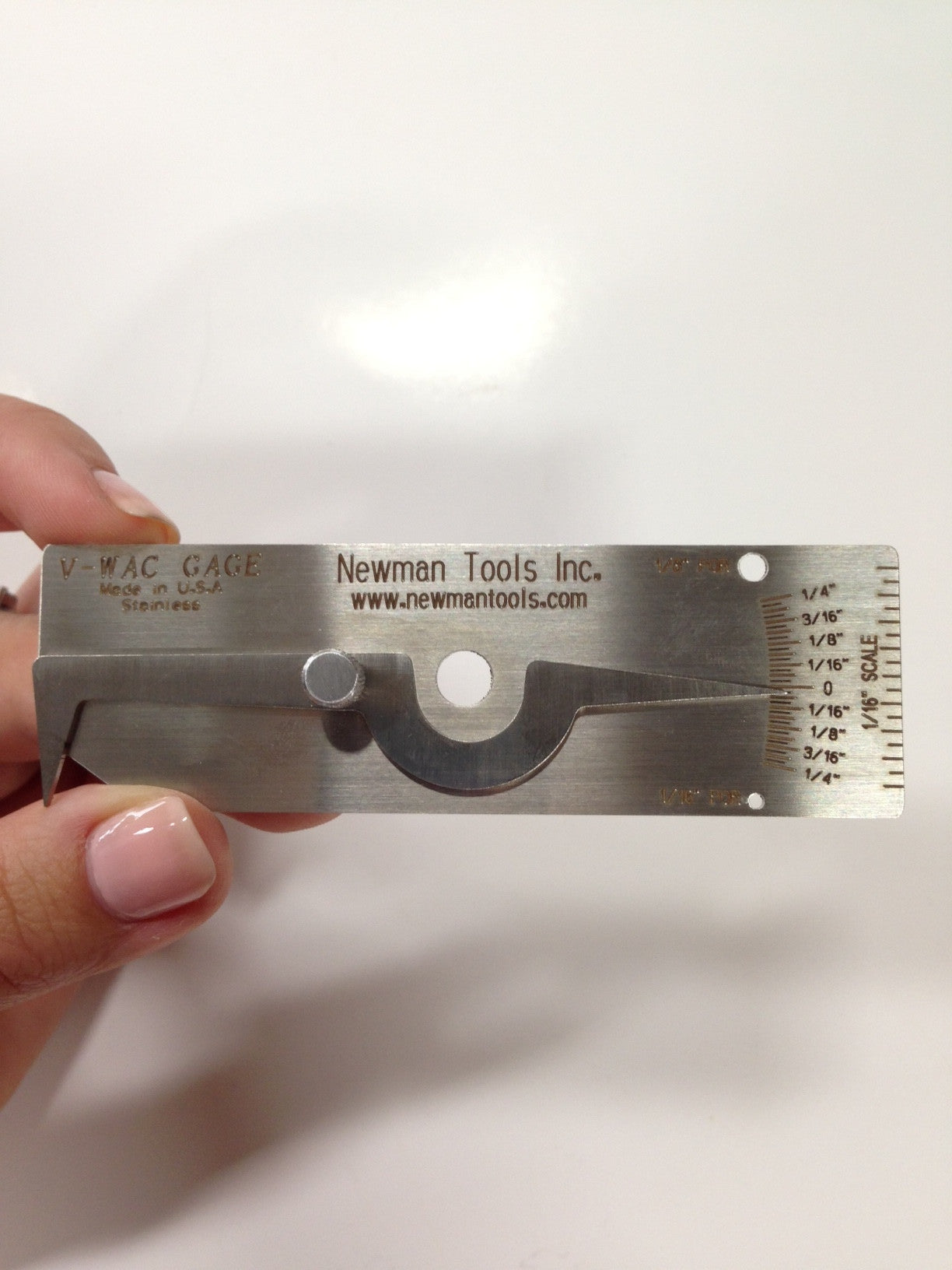

WG-5 V-WAC ™ Gage quickly determine if fillet welds meet NRC Visual Weld Acceptance Criteria for structural weldments.

It easily and quickly checks the four essential measurements required for compliance with NRC Visual Weld Acceptance Criteria. It checks undercut depth, porosity comparison, amount of porosity per linear inch and crown height.


The undercut depth or crown height scale can be read to 1/32 inch.

Porosity comparision of 1/8" and 1/16 inch.

Linear gage in 1/16 inch increments.

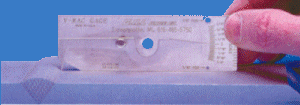

The gage is easy to set and a locking screw holds it in position for later reference. All four required measurements are made with a single gage.

Trademarks are the properties of their respective owner(s).

June 2022, updated Sept 2012 ,November 2009 CSS, December 2001

The descriptions, illustrations, specifications, dimensions, and part numbers are subject to change without notice.
