Weld Gauge or Bridge Cam Gauge WG-4

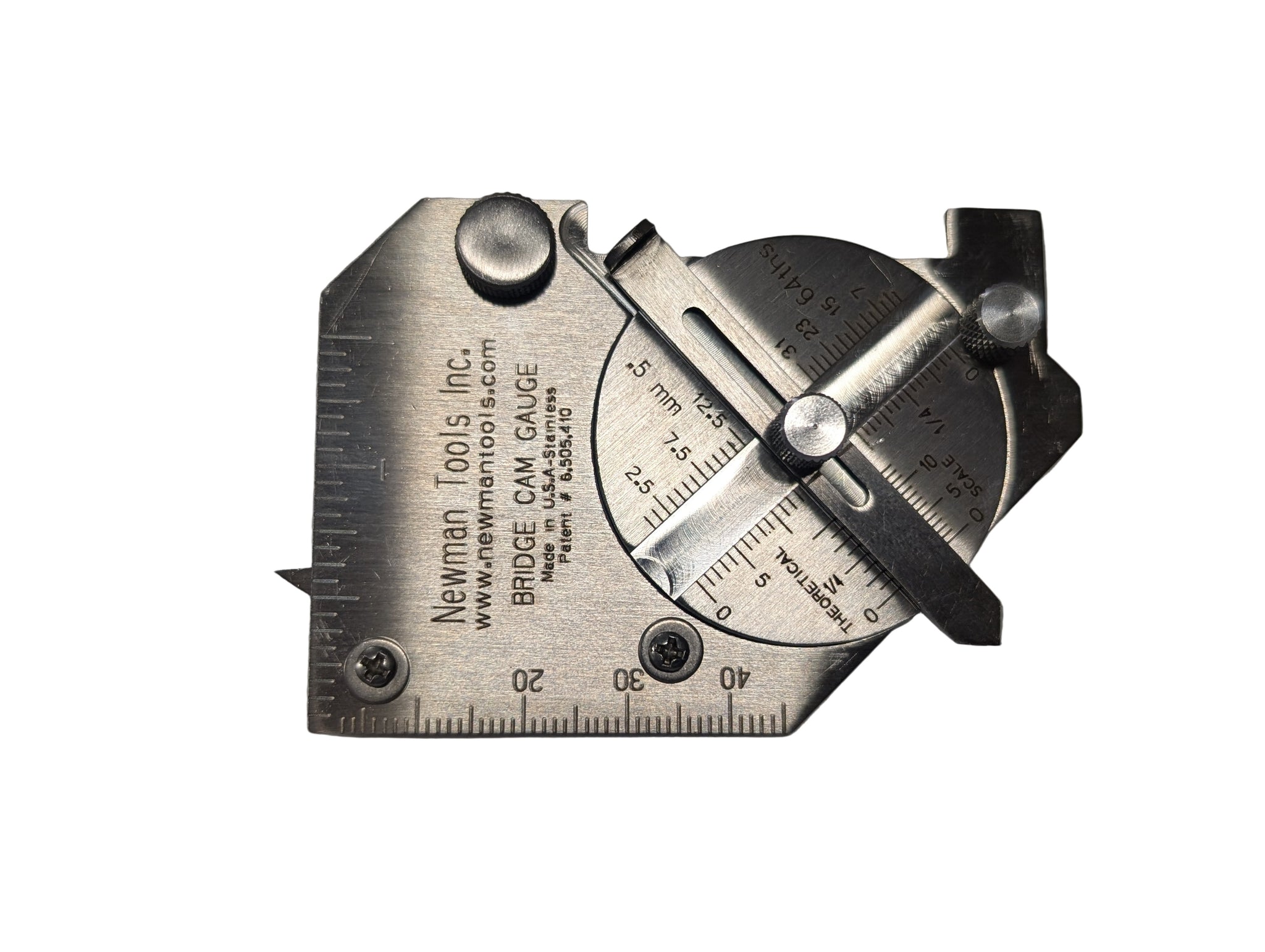

WG-4 bridge cam gauge

The following measurements are possible either in inches or millimeters

• Angle of preparation, 0º to 60º
• Excess weld metal (capping size)
• Depth of undercut
• Depth of pitting
• Fillet weld throat size
• Fillet weld length
• Misalignment (high-low)

WG-4 Weld Gauge or Bridge Cam Gauge is a unique, versatile instrument for the inspection of welded surfaces and joints.

It measures angle of preparation, 0 to 60 º, excess weld metal ( capping size), depth of undercut, depth of pitting, fillet weld throat size, fillet leg length, misalignment ( high-low), and linear measurements up to 60mm or 2 inches.

It measures in both inch or millimeters.

It is easy to use. It comprising of one rotating dial and one sliding pointer. Move the dial or pointer until it makes the appropriate contact and then read the result.









excess metal

Excess Weld Metal

Scale reads in Inches and Millimeters.
Gage is placed on lower piece and dial rotated until it contacts higher piece

fillet weld throat

Fillet Weld Throat

Small sliding pointer reads to 20mm and 3/4".
Gage also fits flush in 90° corners.

angle of preparation

Angle of Preparation

.Scale reads 0° to 60° in 5° increments.
Angle is read against the chamfered edge of the dial.

May 2022, updated November  2016, November 2009 CSS, December 2001

The descriptions, illustrations, specifications, dimensions, and part numbers are subject to change without notice.
