WTPS Gauge WG-7

WTPS Gauge WG-7

WTPS Gauge

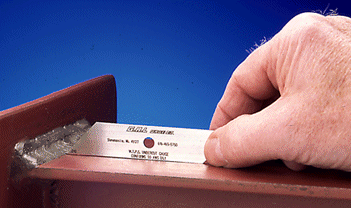

Measure Undercut 0.010" Deep

WTPS gage
Undercut shall be no more than
0.010 in. (0.25 mm) deep when the weld
is transverse to the primary stress
in the part that is undercut.

WTPS gage
The WTPS Gauge is a precision gauge
made from stainless steel. All markings and
dimensions are laser engraved for ease and
clarity when reading.

Gauge set comes with a precision ground
calibration block as shown above, each block
has been surface ground to 0.0005 tolerance
for exceptional accuracy.
