Order on Line  add to cart

37° FLARING TOOLS

437 fb flaring tools

37° FLARING TOOL
For 3/16", 1/4", 5/16", 3/8", 1/2" and 5/8" O.D. tubing.

IMP.437-FB
For use with soft copper, aluminum and brass tubing. Hardened steel, chrome-finished cone makes exceptionally smooth, high strength flares with a radius at base of flare – instead of the sharp angle formed by ordinary tools. New slip-on yoke permits use in tight quarters, allows flaring where there is little space between nut and tube end. New feed screw design provides smooth, easier operation. Positive gripping and self-gauging of tube for exact flare size. Sliding die blocks lock in place by clamp action. Satin chrome and black finish. Wt. 1.75 lbs.



Download the Tubing Tool Selector
Reference Guide 01 (PDF)

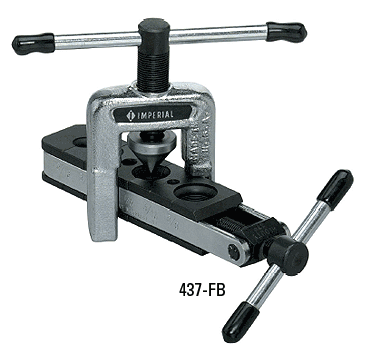

437 fb flaring tool

table of flaring info

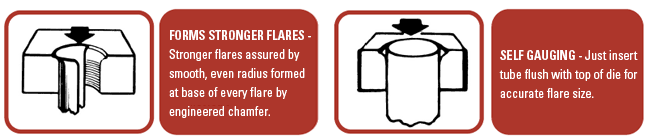

stronger flares







37° ROL-AIR® FLARING TOOL
For 3/16", 1/4", 5/16", 3/8", 1/2" and 5/8" O.D. tubing.

IMP.507-FB
For use with soft copper, aluminum and brass tubing.
Faceted, hard chrome-finished cone rolls out perfect 37°
flares above die block - then automatically burnishes flare
face. Original wall thickness is maintained at base of flare.
New slip-on yoke permits use in tight quarters where there
is little space between nut and tube end. Larger handle,
with better leverage, and precision threads on feed screw
make flaring effortless. Heat treated dies firmly grip tubing.
Satin chrome and black finish. Wt. 1.75 lbs.

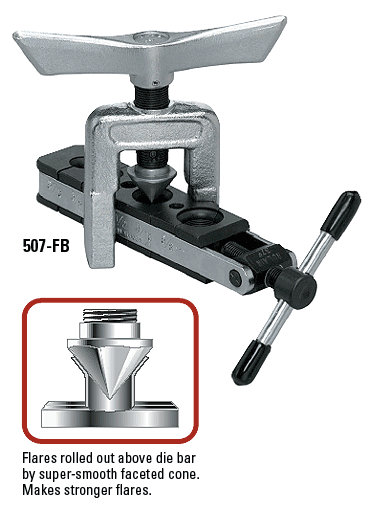

507 FB flaring tool

info table for 507 fb





link to Imperial Tools index page

February 2022, February 2020 , updated November 2009 CSS, July 2009,October 2005

The descriptions, illustrations, specifications, dimensions, and part numbers are subject to change without notice.
